Keysight (Agilent) E5383A
| Attribute | Value |
|---|---|
| Product Family | Infiniium Oscilloscope Probe |
| Probe Type | Single-ended Flying Lead Probe Set |
| Compatible Instruments | Keysight Infiniium Series Oscilloscopes |
| Number of Channels | 16 Channels |
| Connector Type | Low-voltage differential signaling (LVDS) compatible connector |
| Cable Length | 2.5 m (8.2 ft) |
| Lead Pitch Compatibility | Compatible with 0.1 inch (2.54 mm) pitch connectors |
| Interface | Connects to E5382A or compatible logic analyzer probe interface |
| Input Impedance | 100 kΩ ± 2% with 3 pF typical |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Model | E5383A |
|---|

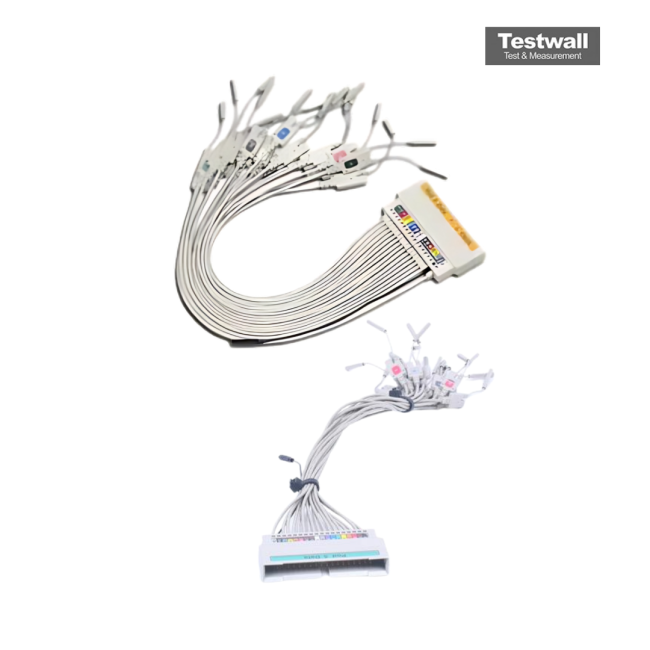

The Keysight (Agilent) E5383A is a 17-channel single-ended flying lead probe optimized for logic analyzers with 40-pin cable connectors. With a load capacitance of just 1.5 pF and the ability to detect signals as low as 600 mV peak-to-peak, this probe ensures minimal signal distortion and precise data acquisition across varied test points.
Ideal for situations where no probing point is designed in, the E5383A connects easily via 0.63 mm square pins or 0.66–0.84 mm round pins and includes an IC test clip for versatile probing across board features and components.
Testwall can supply the used Keysight (Agilent) E5383A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5383A.
