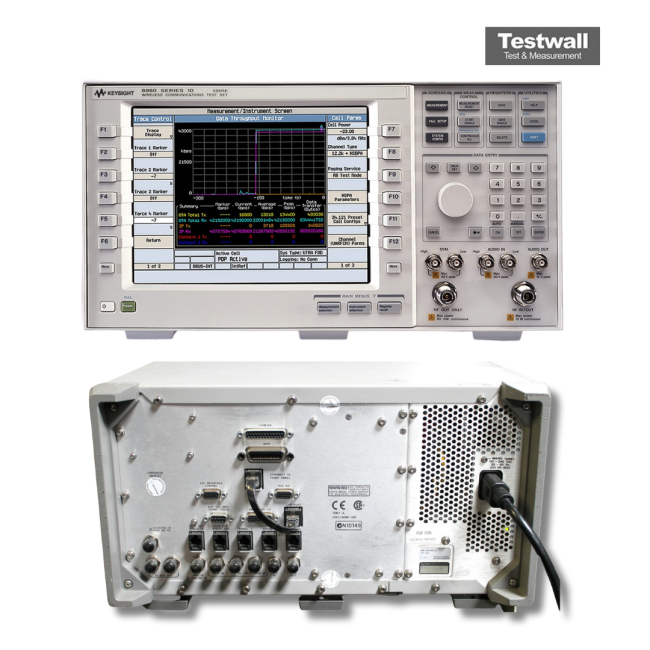

Keysight (Agilent) E5515C,8960
| Attribute | Value |
|---|---|
| Frequency Range | 292 MHz to 2700 MHz |
| Supported Technologies | GSM, GPRS, EGPRS (EDGE), W-CDMA, HSDPA, HSUPA, cdma2000, 1xEV-DO |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | Up to +33 dBm (continuous), +43 dBm (peak, ≤ 1% duty cycle) |
| Audio Frequency Range | 300 Hz to 3400 Hz |
| Interface Ports | GPIB, RS-232, LAN (10Base-T/100Base-TX), USB |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
| Power Consumption | Approximately 350 W maximum |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 425 mm x 221 mm x 450 mm (16.7 in x 8.7 in x 17.7 in) |
| Model | E5515C,8960 |
|---|
The Keysight (Agilent) E5515C 8960 Series 10 is a high-performance wireless communications test set supporting frequency ranges from 292 to 2700 MHz. It offers output levels from -110 to -13 dBm with modulation and boasts a VSWR below 1.2:1 between 400 and 2000 MHz. Source level accuracy is maintained within ±1.0 dB across multiple frequency bands.
This model is ideal for comprehensive RF measurements and flexible network emulation across various wireless device development stages.
Testwall can supply the used Keysight (Agilent) E5515C 8960, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5515C 8960.
