Keysight (Agilent) E8311A
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 3 GHz |
| Output Power Range | -136 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB (at 25°C, 50 MHz to 2 GHz) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation, I/Q Modulation |
| RF Connector Type | Type-N Female, 50 Ohm |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Interface/Connectivity | GPIB, RS-232, LAN (10Base-T) |
| Model | E8311A |
|---|

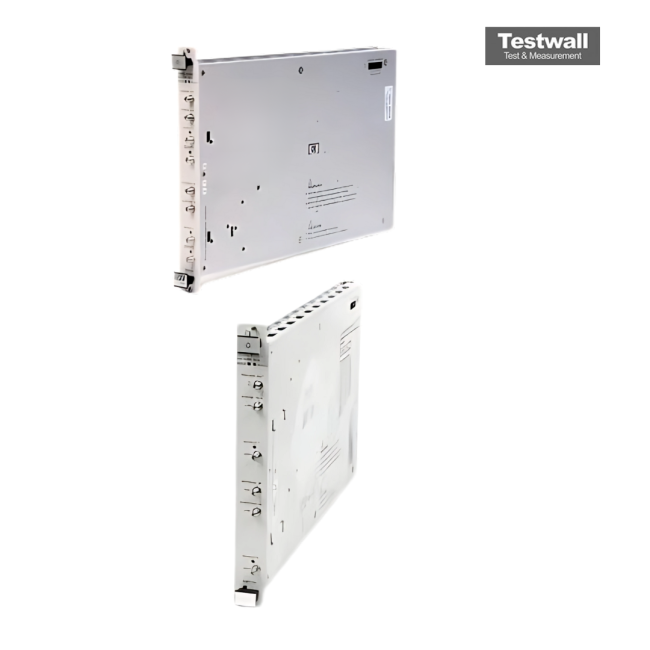

The Keysight (Agilent) E8311A is a 165 MHz VXI C-size Pulse Pattern Generator designed for precise testing applications. It supports 10 V output into 50 Ohm, features dual single-ended SMA channels, and delivers 2 ns to 200 ms transition times. It offers 16 Kbit patterns per channel and full compatibility with Agilent 81110A, supporting a broad range of synchronization and trigger configurations.
This module suits high-speed digital testing, radar systems, serial bus validation, and synchronization for automated setups. Its fixed and variable delay options provide flexibility for complex timing environments.
Testwall can supply the used Keysight (Agilent) E8311A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8311A.
