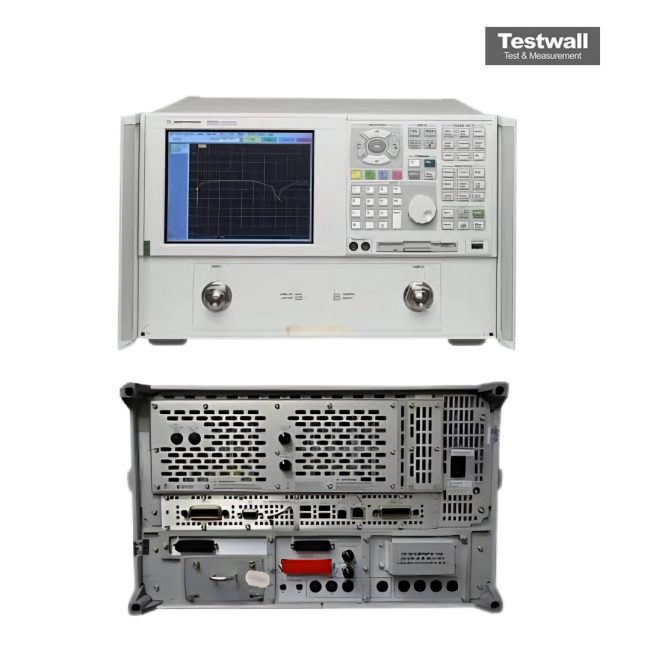

Keysight (Agilent) E8362A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -5 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Connector Type | 3.5 mm (f) test port connectors |
| IF Bandwidth | 1 Hz to 40 kHz |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Number of Data Points | 1 to 16,001 points per sweep |
| Power Supply | 100–240 VAC, 50/60 Hz, 350 W maximum |
Keysight Technologies E8362A Options:
- E8362A - 010 - Time Domain
- E8362A - 014 - Extended Configuration, Source Access, Receiver (Configurable Test Set)
- E8362A - UNL - Extended Power Range and Bias-Tees
| Model | E8362A |
|---|
The Keysight (Agilent) E8362A is a high-performance vector network analyzer from the PNA Series, designed for high-frequency testing from 45 MHz to 20 GHz. It offers fast sweep speeds (<26 µs/point), 123 dB dynamic range at test port, and up to 138 dB with direct receiver access. TRL/LRM calibration is supported for waveguide, on-wafer, and in-fixture measurements, enhanced by optional source attenuators, bias-tees, and direct receiver access. It includes 256MB RAM and supports COM/DCOM and SCPI programming.
This analyzer is ideal for precise active device characterization and extended dynamic range measurements, particularly in high-performance RF and microwave component testing environments.
Testwall can supply the used Keysight (Agilent) E8362A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8362A.
