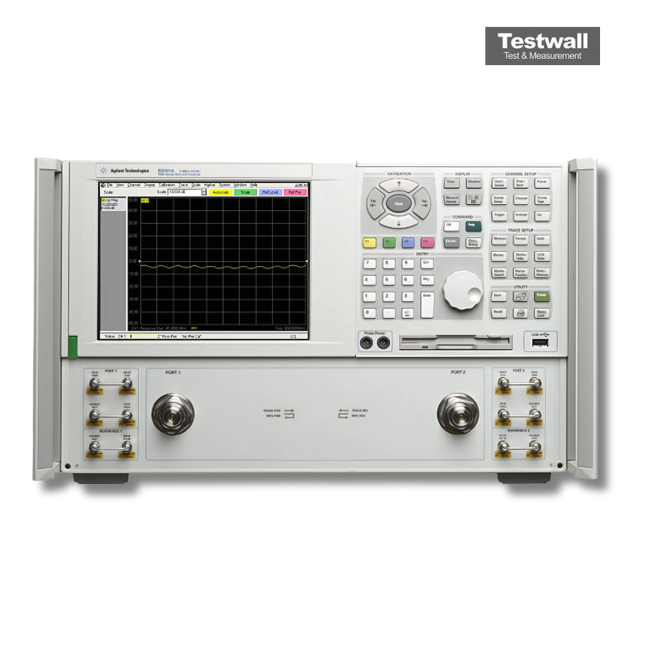

Keysight (Agilent) E8362B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 2.4 mm (female) |
| IF Bandwidth Range | 1 Hz to 125 kHz |
| Number of Data Points per Sweep | 1 to 32,001 |
| Power Level Accuracy | ±0.6 dB |
| Measurement Parameters | S-parameters, absolute power, receiver measurements (A, B, R1, R2) |
Keysight (Agilent) E8362B Options:
Options available for the Keysight (Agilent) PNA series microwave network analyzers (E8361/E8362/E8363/E8364). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- E8362B - 010 - Time-domain measurements
- E8362B - 014 - Configurable test set (front-panel access loops)
- E8362B - UNL - Extended power range and bias-tees
- E8362B - 016 - Receiver attenuators
- E8362B - 080 - Frequency-offset mode
- E8362B - 081 - Reference receiver switch
- E8362B - 082 - Scalar-calibrated converter measurements
- E8362B - 083 - Frequency converter application with vector-calibrated measurements
- E8362B - H08 - Pulsed-RF measurement capability
- E8362B - H11 - IF access
- E8362B - 1CM - Rack mount kit
- E8362B - 1CP - Rack mount kit with handles
The Keysight (Agilent) E8362B is a general-purpose PNA network analyzer covering 10 MHz to 20 GHz. It delivers an exceptional 123 dB dynamic range and trace noise below 0.006 dB, ensuring high-precision S-parameter measurements across up to 32 channels. Its ultra-fast measurement speed (<26 µs/point) and robust calibration capabilities support advanced TRL/LRM, waveguide, and antenna testing.
Optimized for demanding multiport and pulsed RF applications, the E8362B supports mixers, harmonic distortion, and IMD measurements. It also offers configurability for on-wafer setups and amplifier testing scenarios.
Testwall can supply the used Keysight (Agilent) E8362B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8362B.
