Keysight (Agilent)

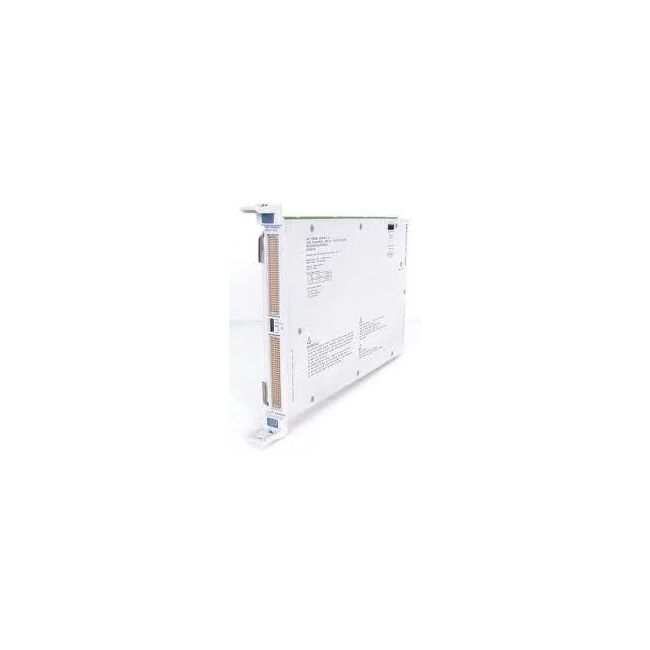

Keysight (Agilent) E8460A
VXI Reed Relay Multiplexer
32 Channels Number of Channels
Up to 128 two-wire channels per mainframe Switching Capacity
300 V DC or AC RMS Voltage Rating
1 A per channel Current Rating
Less than 1 Ohm initial Contact Resistance
| Attribute | Value |
|---|---|
| Number of Channels | 32 Channels |
| Switching Capacity | Up to 128 two-wire channels per mainframe |
| Voltage Rating | 300 V DC or AC RMS |
| Current Rating | 1 A per channel |
| Contact Resistance | Less than 1 Ohm initial |
| Insulation Resistance | Greater than 10^9 Ohm at 500 V DC |
| Compatible Mainframe | E8400A Series Switching Mainframe |
| Relay Type | Reed Relay |
| Form Factor | Plug-in module card for E8400A mainframe |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies E8460A Options:
- E8460A - 012 - Crimp and Insert Connector Terminal Block
- E8460A - 014 - Fault Tolerant Terminal Block
- E8460A - 015 - Ribbon Cable Connector Terminal Block
- E8460A - 0B3 - Service Manual
| Model | E8460A |
|---|
The Keysight (Agilent) E8460A is a C-size, 1-slot, register-based VXI multiplexer offering 256 channels via high-speed reed relays. It supports two-wire, three-wire, and four-wire measurement configurations, ideal for high-density and high-speed switching applications.
This device provides reconfigurable topologies and ensures precise measurements in environments demanding fast scanning and compact form factor integration.
Testwall can supply the used Keysight (Agilent) E8460A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8460A.
