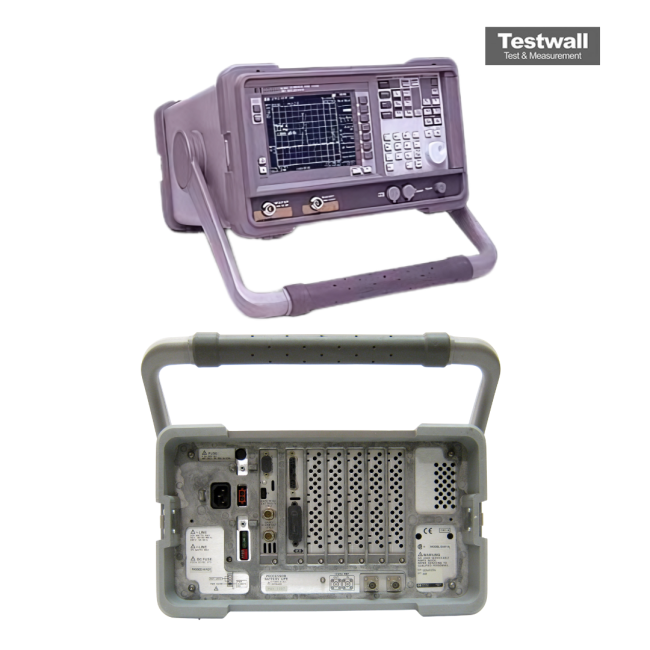

Keysight (Agilent) ESA-L1500A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 1.5 GHz |
| Displayed Average Noise Level (DANL) | -145 dBm (typical) at 1 GHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Resolution Bandwidth (RBW) | 300 Hz to 5 MHz (-3 dB bandwidths) |
| Amplitude Accuracy | ±0.5 dB (total amplitude accuracy, typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | >95 dB (typical third-order intermodulation free dynamic range) |
| Display | 6.5-inch color LCD, 640 x 480 resolution |
| Interface / Connectivity | GPIB, RS-232, parallel printer port |
Keysight Technologies ESA-L1500A Options:
- ESA-L1500A - 1DN - Tracking Generator, 50 Ω (9 kHz to 1.5 GHz)
- ESA-L1500A - 1DQ - Tracking Generator, 75 Ω (1 MHz to 1.5 GHz)
- ESA-L1500A - 1DP - 75 Ω Input (1 MHz to 1.5 GHz)
- ESA-L1500A - 1DR - Digital Resolution Bandwidths (adds 100 Hz, 300 Hz -3 dB RBW; 200 Hz -6 dB EMI RBW; and 1, 3, 10 Hz VBW)
- ESA-L1500A - A4H - GPIB Interface and Parallel (Printer) Port
- ESA-L1500A - A4J - AUX IF OUT, AUX VIDEO OUT, HI SWP IN, HI SWP OUT, and SWP OUT rear-panel connectors
- ESA-L1500A - 1AX - Serial (RS-232) Interface and Parallel (Printer) Port
- ESA-L1500A - 290 - 8590 Series Compatibility
- ESA-L1500A - B72 - 8 MB Internal Memory (for serial numbers prior to US41440000 or MY41440000)
- ESA-L1500A - BAB - APC 3.5 Male Input Connector
| Model | ESA-L1500A |
|---|
The Keysight (Agilent) ESA-L1500A Spectrum Analyzer features a wide-band super-heterodyne receiver, ideal for capturing high-frequency signals up to tens of GHz. This sensitive instrument converts frequencies into measurable DC levels using logarithmic scales and displays them on its CRT. Signal strength is shown on the y-axis, while frequency spans the x-axis, enabling precise spectrum analysis across selected frequency ranges.
Perfect for RF signal analysis, the ESA-L1500A offers slow frequency sweeps, enabling detailed measurement and signal identification in a wide spectrum band. Its analog CRT display enhances signal tracking and accuracy.
Testwall can supply the used Keysight (Agilent) ESA-L1500A Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) ESA-L1500A Spectrum Analyzer.
