Keysight (Agilent) J2901A
Compliance Test Solution for USB Product Family
USB 2.0 High-Speed Compliance Testing Supported Standard
Electrical compliance testing for USB 2.0 High-Speed devices, hubs, and hosts Test Coverage
Compatible with Keysight Infiniium oscilloscopes Software Compatibility
Eye diagram, signal quality, jitter, and timing measurements Measurement Capabilities
| Attribute | Value |
|---|---|
| Product Family | Compliance Test Solution for USB |
| Supported Standard | USB 2.0 High-Speed Compliance Testing |
| Test Coverage | Electrical compliance testing for USB 2.0 High-Speed devices, hubs, and hosts |
| Software Compatibility | Compatible with Keysight Infiniium oscilloscopes |
| Measurement Capabilities | Eye diagram, signal quality, jitter, and timing measurements |
| Automation Support | Automated test execution and pass/fail reporting |
| Report Generation | Automated HTML-based compliance test reports |
| Operating System | Windows-based software environment |
| Fixture Compatibility | Designed for use with USB test fixtures for device under test (DUT) connection |
| Compliance Authority | USB Implementers Forum (USB-IF) compliance test specification aligned |
| Model | J2901A |
|---|

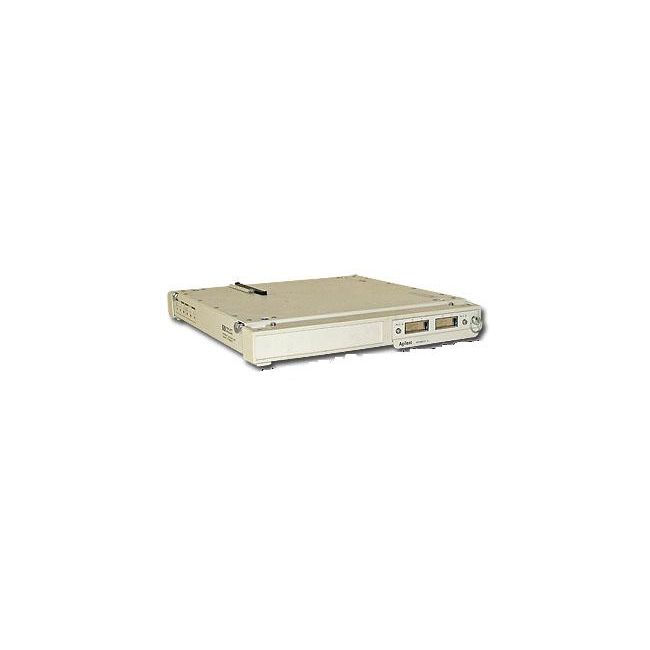

The Keysight (Agilent) J2901A is a high-performance Gigabit Ethernet undercradle that enables full-duplex monitoring, MAC-level analysis, traffic generation at full line rate, and 7-layer protocol decoding, ideal for comprehensive network testing.
It supports hardware-based 16 ns time-stamping, extensive filters and triggers, and offers robust protocol and error statistics for LAN, WAN, and ATM network maintenance.
Testwall can supply the used Keysight (Agilent) J2901A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J2901A.
