Keysight (Agilent) J7230A
| Attribute | Value |
|---|---|
| Product Family | Keysight J7230A Multiport Optical Switch |
| Switch Configuration | 1x4 Optical Switch Module |
| Wavelength Range | 1260 nm to 1640 nm |
| Insertion Loss | ≤ 1.5 dB (typical) |
| Isolation | ≥ 55 dB |
| Return Loss | ≥ 50 dB |
| Switching Speed | ≤ 10 ms |
| Connector Type | FC/APC |
| Repeatability | ≤ 0.005 dB |
| Compatible Mainframe | Keysight 8164A/B Lightwave Measurement System |
Keysight Technologies J7230A Options:
- J7230A - 004 - Mainframe – side mounted connectors
- J7230A - 005 - Mainframe – rear mounted connectors
- J7230A - 101 - 10 Gb/s optical interfaces NOT required (Must order option 111)
- J7230A - 108 - SONET/SDH optical testing at 10 Gb/s – 1550 nm transmit wavelength
- J7230A - 100 - 52 to 2488 Mb/s interfaces not required
- J7230A - 104 - Multirate SONET/SDH testing from 52 to 2488 Mb/s – 1310 nm transmit wavelength
- J7230A - 105 - Multirate SONET/SDH test 52 to 2488 Mb/s – 1550 nm transmit wavelength
- J7230A - 106 - Multirate SONET/SDH test 52 to 2488 Mb/s – 1310/1550 nm transmit wavelength
- J7230A - 111 - OTU1 testing at 2.66 Gb/s (Must also order option 104 or 105 or 106)
- J7230A - 112 - OTU2 testing at 10.71 Gb/s (Must also order option 108)
- J7230A - 510 - Add mixed mapping generation plus STS-6c, 9c, 24c and AU-4-2c, 3c, 8c mappings
- J7230A - 609 - Exchangeable optical connectors – FC/PC
- J7230A - 610 - Exchangeable optical connectors – SC
- J7230A - 611 - Exchangeable optical connectors – ST
- J7230A - 012 - Adds DSn/PDH framed/unframed testing plus DSn/PDH electrical interfaces
- J7230A - UK6 - Calibration certificate with test data
| Model | J7230A |
|---|

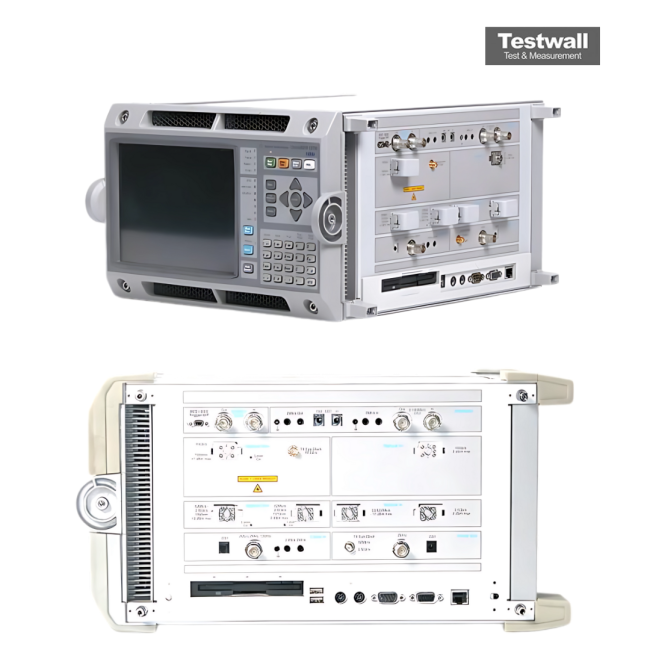

The Keysight (Agilent) J7230A OmniBER OTN 10 Gb/s analyzer supports BER and overhead testing across all SONET/SDH rates from 52 Mb/s to 10 Gb/s and G.709 OTU1 (2.66 Gb/s) and OTU2 (10.71 Gb/s) channels. It features OTU frame capture, FEC simulation, STS/AU channel monitoring, and advanced concatenation and mapping capabilities.
Ideal for validating next-generation optical devices, it ensures interoperability with mixed vendor equipment, minimizing market deployment times.
Testwall can supply the used Keysight (Agilent) J7230A OmniBER OTN 10 Gb/s analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J7230A OmniBER OTN 10 Gb/s analyzer.
