Keysight (Agilent)
Keysight (Agilent) J7232A
DC to 26.5 GHz Frequency Range
32 ports Number of Ports
3.5 mm (m) Connector Type
Less than 1.5 dB at 26.5 GHz Insertion Loss
Less than 1.5:1 at 26.5 GHz VSWR
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Number of Ports | 32 ports |
| Connector Type | 3.5 mm (m) |
| Insertion Loss | Less than 1.5 dB at 26.5 GHz |
| VSWR | Less than 1.5:1 at 26.5 GHz |
| Isolation | Greater than 70 dB at 26.5 GHz |
| Input Power | +27 dBm maximum |
| Switch Configuration | 1 x 32 multiplexer (MUX) |
| Control Interface | GPIB, LAN, USB |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies J7232A Options:
- J7232A - 104 - Wavelength ≤ 2.5 Gb/s: 1310 nm
- J7232A - 106 - Wavelength ≤ 2.5 Gb/s: 1310/1550 nm
- J7232A - 108 - Wavelength 10 Gb/s: 1550 nm
- J7232A - 112 - Wavelength 10/10.71 Gb/s: 1550 nm
- J7232A - 609 - Optical Connector: FC/PC
- J7232A - 610 - Optical Connector: SC
- J7232A - 611 - Optical Connector: ST
- J7232A - 012 - DSn/PDH Electrical interfaces
| Model | J7232A |
|---|

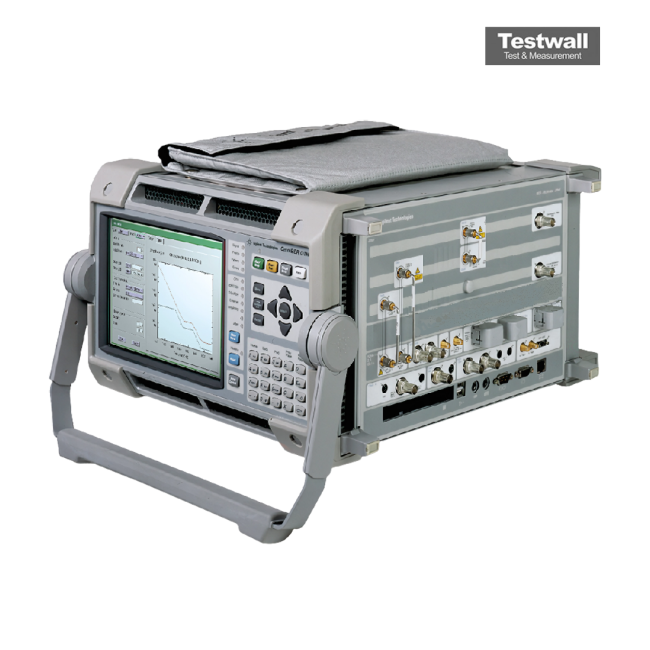

The Keysight (Agilent) J7232A OmniBER OTN 2.5 Gb/s Analyzer supports advanced SONET/SDH testing with Ethernet payload simulation, GFP and LAPS encapsulation, virtual concatenation, and LCAS emulation. It also provides OTU2 channel support with FEC analysis.
This analyzer enables encapsulation analysis, differential delay measurement up to 256ms, and simultaneous BER and alarm monitoring for complex network environments.
Testwall can supply the used Keysight (Agilent) J7232A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) J7232A.
