Keysight (Agilent) M9505A
| Attribute | Value |
|---|---|
| Form Factor | AXIe 5-Slot Chassis |
| Number of Slots | 5 Slots |
| Interface | PCIe x8 Gen 2, USB 2.0, LAN (1000Base-T) |
| Power Supply Output | Up to 600 W total system power |
| Cooling | Forced air cooling with front-to-back airflow |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Dimensions (H x W x D) | 133.35 mm x 449.58 mm x 576.58 mm (3U) |
| Weight | Approximately 12.7 kg (28 lbs) |
| Model | M9505A |
|---|

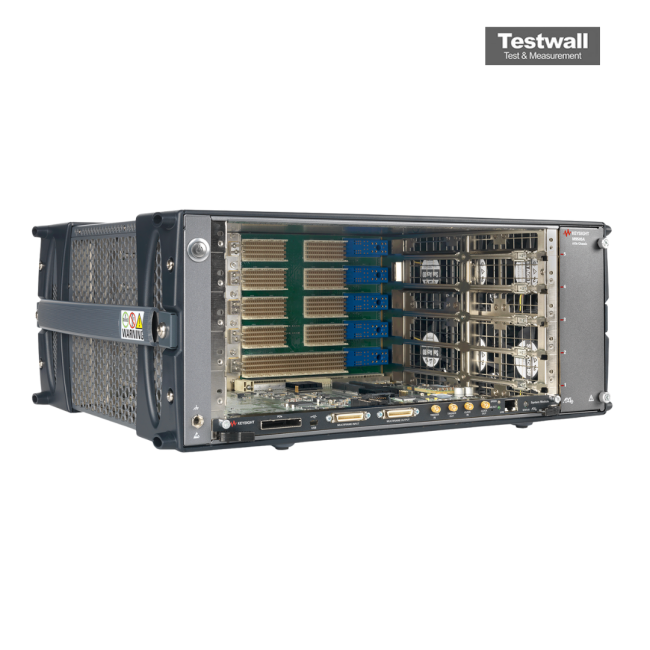

The Keysight (Agilent) M9505A AXIe Chassis complies with AXIe 1.0, featuring a 5-slot backplane, embedded system module, and support for PCIe Gen 2 x8 and x4 interfaces delivering data rates up to 4 GB/s. It offers Gigabit LAN, external clock/trigger connectors, and advanced cooling within a 4U rack form factor. Maintenance is simplified with removable power and fan modules.
This chassis is ideal for both rack-mounted and transportable applications, maximizing system bandwidth when combined with the M9048A PCIe adaptor.
Testwall can supply the used Keysight (Agilent) M9505A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) M9505A.
