Keysight (Agilent) MSO6102A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 12 Mpts (optional) |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Display | 8.5-inch WVGA color display |
| Triggering | Edge, Glitch, Pattern, Transition, Runt, Setup & Hold, Video, Serial (optional) |
| Serial Protocol Analysis | I2C, SPI, UART, CAN, LIN (optional licenses) |
| Model | MSO6102A |
|---|

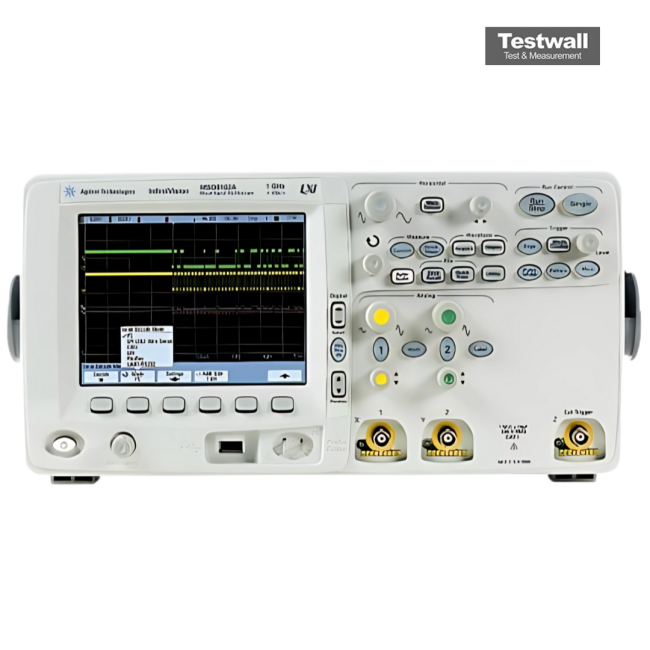

The Keysight (Agilent) MSO6102A Mixed Signal Oscilloscope offers 1 GHz bandwidth with 2 analog and 16 digital channels, 4 GSa/s sample rate, and 8 Mpts deep memory for comprehensive signal analysis. Its 100,000 wfms/s update rate ensures rapid waveform capture and troubleshooting efficiency.
Ideal for complex debugging, the MSO6102A includes standard interfaces such as USB, LAN, GPIB, and XGA out, and supports optional battery power for flexible operation in varied environments.
Testwall can supply the used Keysight (Agilent) MSO6102A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO6102A.
