Keysight (Agilent)

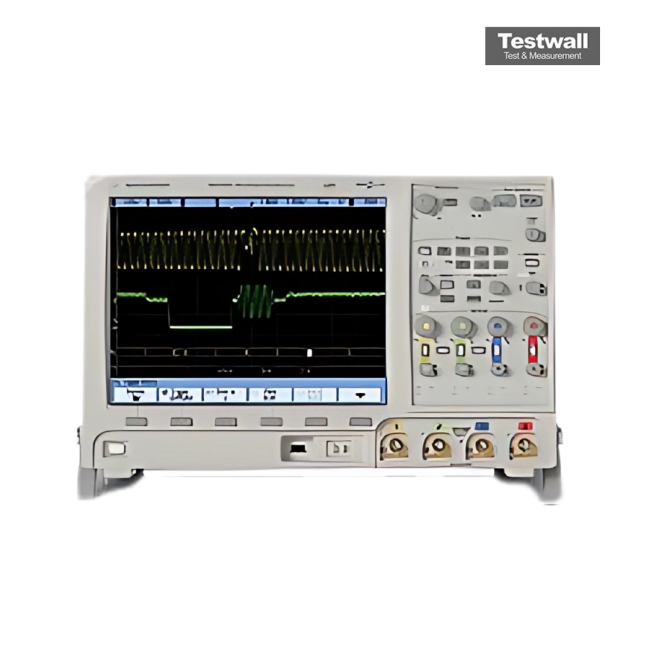

Keysight (Agilent) MSO7054A
500MHz - 4GSa/s Digital Oscilloscope
500 MHz Bandwidth
4 Analog Channels
16 Digital Channels
4 GSa/s Sample Rate
8 Mpts (standard), up to 32 Mpts (optional) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 32 Mpts (optional) |
| Vertical Resolution | 8-bit |
| Timebase Range | 2 ns/div to 50 s/div |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, UART/RS232, USB |
| Display | 8.5-inch SVGA color display (800 x 600 resolution) |
| Connectivity/Interfaces | USB, LAN (LXI Core 2011), GPIB (optional) |
| Model | MSO7054A |
|---|
The Keysight (Agilent) MSO7054A delivers 500 MHz bandwidth across 4 analog and 16 digital channels, with a 4 GSa/s sampling rate and 8 Mpts MegaZoom III memory for precise, high-resolution signal analysis.
It supports advanced debugging with a 12.1” XGA display and a 100,000 wfms/s waveform update rate for dynamic signal visualization.
Testwall can supply the used MSO7054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the MSO7054A.
