Keysight (Agilent) MSOS404A
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 20 GSa/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 2 Gpts (standard), up to 8 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit in high resolution mode) |
| Rise Time | 116 ps |
| Display | 15.4-inch capacitive touch screen, 1366 x 768 resolution |
| Timebase Range | 500 ps/div to 20 s/div |
| Input Impedance | 50 Ω or 1 MΩ |
| Connectivity / Interfaces | USB, LAN (LXI), GPIB (optional), DisplayPort |
| Model | MSOS404A |
|---|

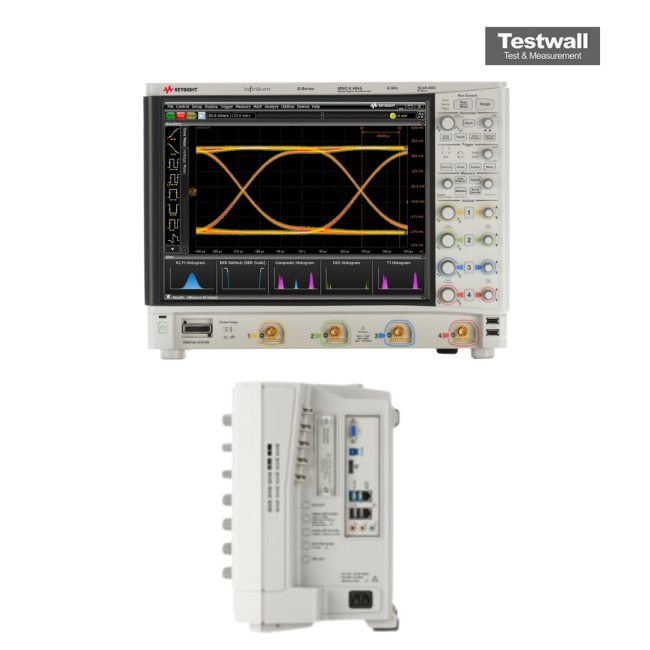

The Keysight (Agilent) MSOS404A S-Series oscilloscope features 4 GHz bandwidth, 4 analog and 16 digital channels, a 15” XGA capacitive touchscreen, and a 10-bit ADC. It achieves up to 16 bits vertical resolution and offers 20 GSa/s sample rate with 100 Mpts/channel standard memory. With 8.1 ENOB at full bandwidth and a wide range of analysis tools, it's built for performance.
This model includes four N2873A 500-MHz probes, MSO accessories, calibration tools, keyboard, mouse, and comprehensive guides. Its SSD ensures rapid startup and reliable operation.
Testwall can supply the used Keysight (Agilent) MSOS404A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOS404A.
