Keysight (Agilent) MSOX2024A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 2 GSa/s |
| Memory Depth | 1 Mpts (2 Mpts interleaved) |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | 50,000 waveforms per second |
| Vertical Resolution | 8 bits |
| Trigger Types | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Nth Edge Burst, Runt, Setup & Hold, Video, USB, I2C, SPI, UART/RS232 |
| Connectivity | USB Host, USB Device (USBTMC), LAN (LXI Core 2011) |
Keysight Technologies MSOX2024A Options:
- MSOX2024A - DSOX2BW22 - Bandwidth upgrade from 100 MHz to 200 MHz on 2 channel models
- MSOX2024A - DSOX2BW24 - Bandwidth upgrade from 100 MHz to 200 MHz on 4 channel models
- MSOX2024A - DSOX2MSO - Upgrade DSO to MSO with 8 digital timing channels
- MSOX2024A - DSOX2WAVEGEN - WaveGen built-in 20 MHz function generator
- MSOX2024A - DSOXEDK - Educator's Oscilloscope Training Kit
- MSOX2024A - DSOX2MASK - Mask limit testing application
- MSOX2024A - DSOX2SGM - Segmented memory acquisition
- MSOX2024A - DSOXLAN - LAN/VGA connection module
- MSOX2024A - DSOXGPIB - GPIB connection module
- MSOX2024A - N6456A - Rack mount kit
- MSOX2024A - N6457A - Soft carrying case and front panel cover
- MSOX2024A - N6458A - Hard copy manual
| Model | MSOX2024A |
|---|

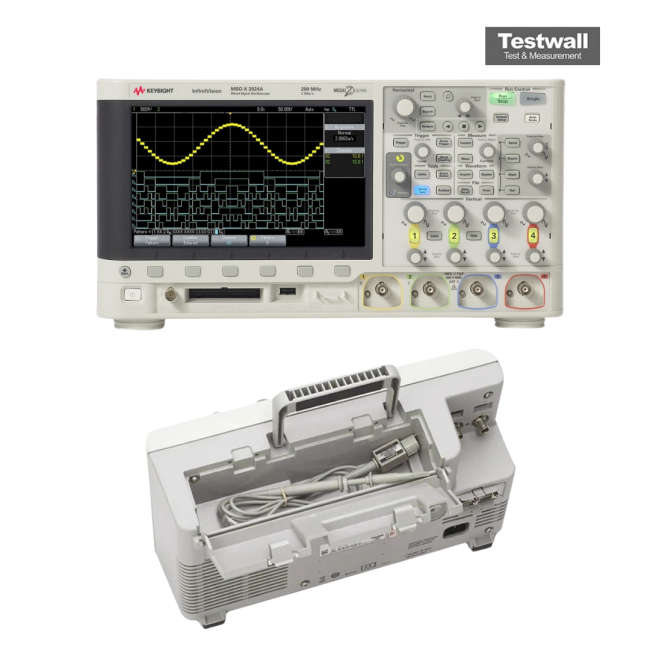

The Keysight (Agilent) MSOX2024A Mixed Signal Oscilloscope delivers 200 MHz bandwidth across 4 analog and 8 digital channels, with an 8.5″ WVGA display, up to 1 Mpts memory, and a rapid 200,000 waveforms/sec update rate. Optional upgrades include a 20 MHz function generator, three‑digit voltmeter, serial trigger & analysis, segmented memory, and mask testing—plus bundled N2863B passive probes, logic probe kit, multi‑language help, and secure erase capability.
Designed for engineers and educators, the MSOX2024A enhances lab setups by capturing infrequent signal events with precision and supporting future expansion through full upgradeability—ideal for budget‑conscious institutions.
Testwall can supply the used Keysight (Agilent) MSOX2024A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX2024A.
