Keysight (Agilent) MSOX3032A
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 4 Mpts per channel |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Triggering | Advanced triggering including I2C, SPI, UART, CAN, LIN serial triggering |
| Connectivity | USB, LAN (LXI Core 2011), USB Device (USBTMC) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
Keysight (Agilent) MSOX3032A Options:
- MSOX3032A - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to 4 Mpts)
- MSOX3032A - DSOX3SGM - Segmented memory
- MSOX3032A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- MSOX3032A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function/arbitrary waveform generator
- MSOX3032A - DSOXDVM - Integrated 3-digit digital voltmeter (DVM)
- MSOX3032A - DSOX3MASK - Mask limit testing
- MSOX3032A - DSOX3ADVMATH - Advanced waveform math
- MSOX3032A - DSOX3VID - Enhanced video/TV triggering and analysis
- MSOX3032A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3032A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3032A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3032A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSOX3032A - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3032A - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553, ARINC 429)
- MSOX3032A - DSOX3PWR - Power measurements and analysis
- MSOX3032A - DSOXEDK - Educator's oscilloscope training kit
- MSOX3032A - DSOX3BW24 - Bandwidth upgrade: 100 MHz to 200 MHz, 4 ch, License only
- MSOX3032A - DSOX3BW52 - Bandwidth upgrade: 350 MHz to 500 MHz, 2 ch, License only
- MSOX3032A - DSOX3BW54 - Bandwidth upgrade: 350 MHz to 500 MHz, 4 ch, License only
- MSOX3032A - DSOX3BW32 - Bandwidth upgrade: 100 MHz to 350 MHz, 2 ch, Service center
- MSOX3032A - DSOX3BW34 - Bandwidth upgrade: 200 MHz to 350 MHz, 4 ch, Service center
- MSOX3032A - DSOX3BW12 - Bandwidth upgrade: 500 MHz to 1 GHz, 2 ch, Service center
- MSOX3032A - DSOX3BW14 - Bandwidth upgrade: 500 MHz to 1 GHz, 4 ch, Service center
- MSOX3032A - DSOXLAN - LAN/VGA connection module
- MSOX3032A - DSOXGPIB - GPIB connection module
| Model | MSOX3032A |
|---|

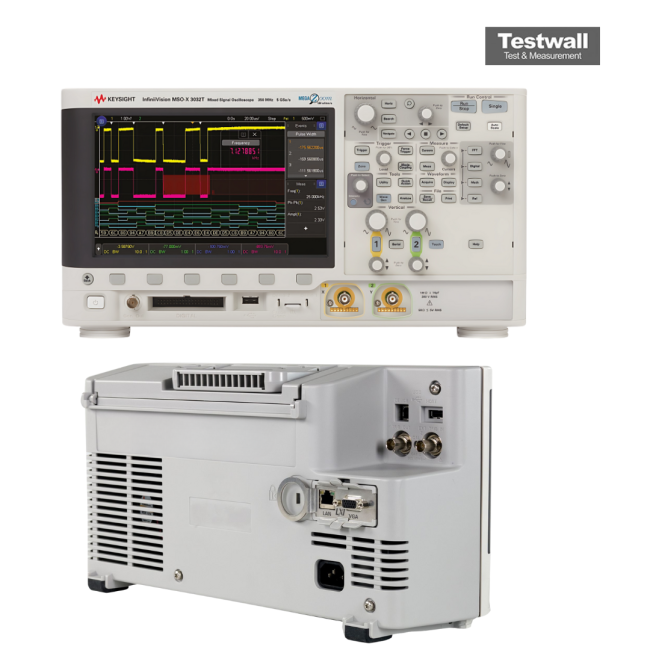

The Keysight (Agilent) MSOX3032A integrates a 350 MHz bandwidth, 2 analog plus 16 digital channels, an 8.5-inch WVGA display, and 4 Mpts memory, making it a high-performance oscilloscope solution. With 1,000,000 wfms/s update rate, it unveils exceptional signal detail and supports full upgradeability, including bandwidth, memory, and advanced analysis features.
This model features a built-in 3-digit voltmeter and 5-digit frequency counter, with results always displayed. The 5-in-1 instrument functionality provides unmatched value and investment protection.
Testwall can supply the used Keysight (Agilent) MSOX3032A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3032A.
