Keysight (Agilent) MSOX3034T
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Serial Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN included standard |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Segmented Memory | Yes, with time tags |
Keysight Technologies MSOX3034T Options:
- MSOX3034T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels (N2756A MSO cable delivered separately)
- MSOX3034T - DSOX3EMBD (-LSS) - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3034T - DSOX3COMP (-232) - Computer serial triggering and analysis (RS232/UART)
- MSOX3034T - DSOXT3SENSOR (-SEN) - Sensor triggering and analysis (SENT)
- MSOX3034T - DSOXT3AUTO (-AMS) - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3034T - DSOX3FLEX (-FLX) - FlexRay serial triggering and analysis
- MSOX3034T - DSOX3AUDIO (-SND) - Audio serial triggering and analysis (I²S)
- MSOX3034T - DSOX3AERO (-AER) - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3034T - DSOX3WAVEGEN (-001) - WaveGen 20 MHz arbitrary/function generator
- MSOX3034T - DSOXT3DVMCTR (-DVM) - Integrated digital voltmeter and 8-digit counter
- MSOX3034T - DSOX3PWR (-PWR) - Power analysis application
- MSOX3034T - DSOX3MASK (-LMT) - Mask limit testing
- MSOX3034T - DSOX3VID (-VID) - Enhanced video/TV application package
- MSOX3034T - DSOXEDK (-EDK) - Education and training kit
- MSOX3034T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3034T - DSOXLAN - LAN/VGA connection module
- MSOX3034T - DSOXGPIB - GPIB connection module
- MSOX3034T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3034T - DSOXT3B3T54 - License only 350MHz to 500MHz upgrade, 4ch
- MSOX3034T - DSOXT3B3T102U - Service center 350MHz to 1 GHz upgrade, 2ch
- MSOX3034T - DSOXT3B3T104U - Service center 350MHz to 1 GHz upgrade, 4ch
| Model | MSOX3034T |
|---|

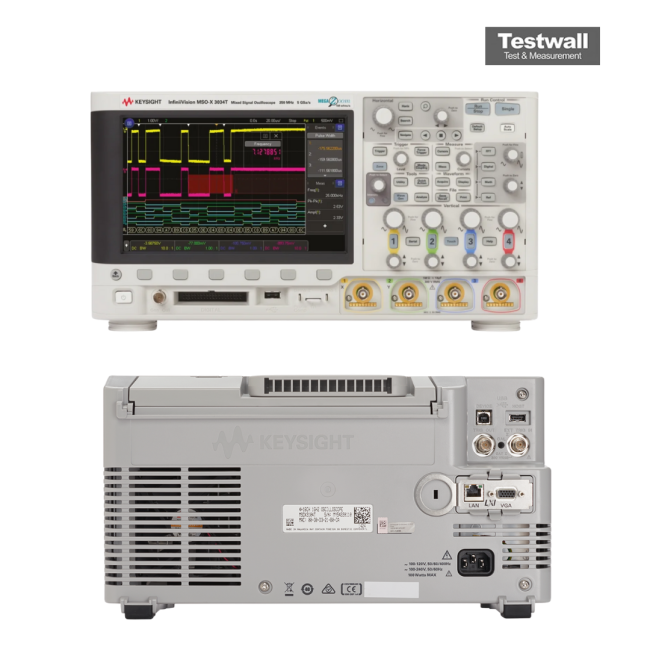

The Keysight (Agilent) MSOX3034T delivers 350 MHz bandwidth with four analog and sixteen digital channels, offering a 5 GSa/s sample rate and 4 Mpts memory depth per channel. It features a vibrant 8.5-inch capacitive touchscreen with multi-touch control and integrates a 20 MHz function generator. Its protocol triggering and decoding cover multiple bus types, with hardware and software upgrade options available.
Perfect for high-speed embedded design, the MSOX3034T ensures detailed insight into signal behavior with its exceptional 1 million wfms/s update rate and mixed-signal capability.
Testwall can supply the used MSOX3034T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the MSOX3034T.
