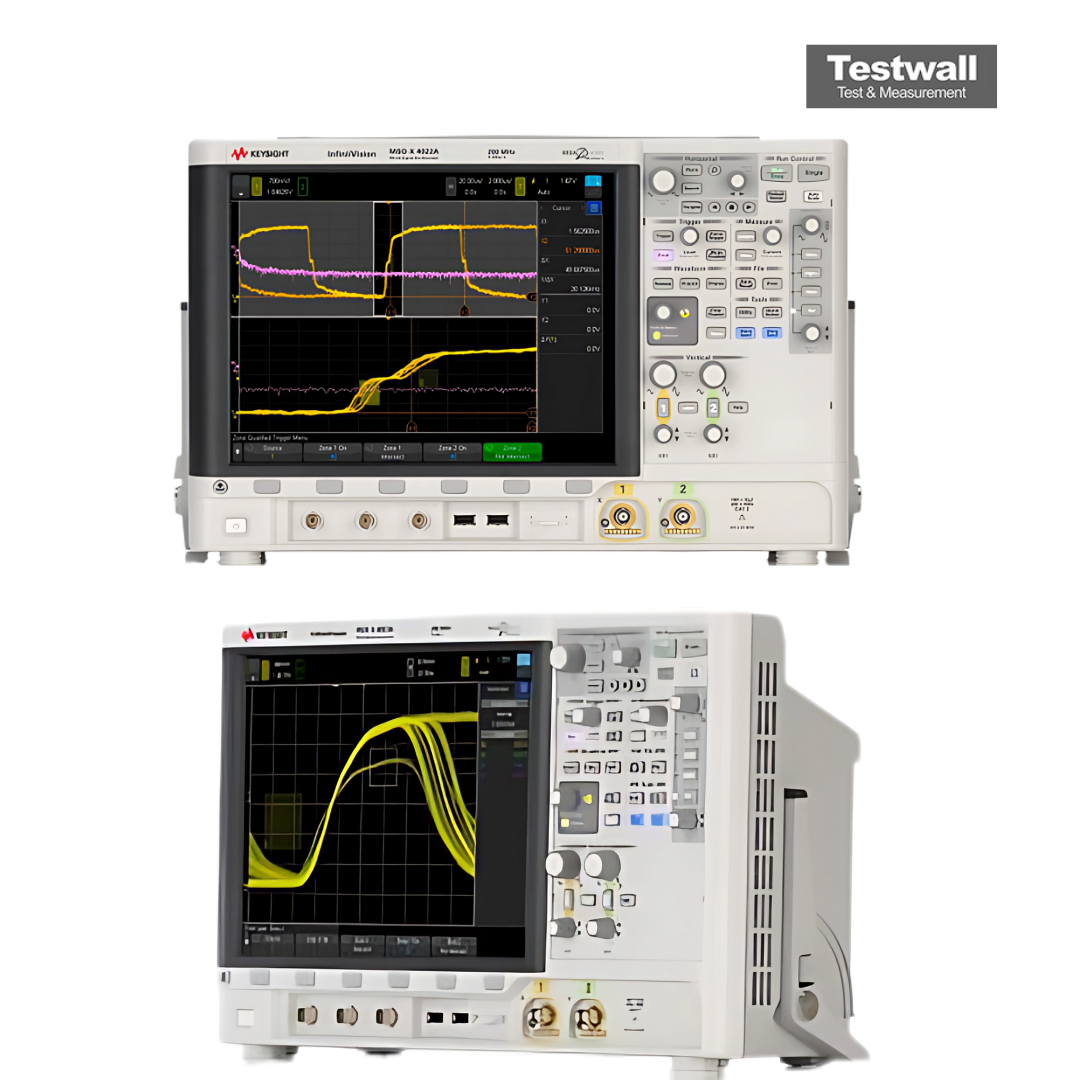

Keysight (Agilent) MSOX4022A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 4 Mpts (standard), 8 Mpts (with memory upgrade option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS-232, CAN, LIN (with optional licenses) |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Model | MSOX4022A |
|---|
The Keysight (Agilent) MSOX4022A is a 200 MHz mixed signal oscilloscope with 2 analog and 16 digital channels, a massive 12.1-inch capacitive touch screen, and exclusive InfiniiScan Zone touch triggering for rapid signal isolation. Featuring MegaZoom IV smart memory technology, it achieves an industry-best 1,000,000 wfms/s update rate, 4 Mpts memory, and standard segmented memory for capturing elusive anomalies. Full upgradeability supports additional waveform generator, DVM, serial analysis, and mask testing.
Ideal for advanced debugging, the MSOX4022A captures detailed signal behavior, offering intuitive operation and investment protection through upgrade paths. It comes equipped with high-performance probes and multilingual interfaces.
Testwall can supply the used Keysight (Agilent) MSOX4022A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX4022A.
