Keysight (Agilent) MSOX4052A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 16 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (with optional licenses) |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Vertical Resolution | 8 bits (11 bits with high resolution mode) |
Keysight (Agilent) MSOX4052A Options:
- MSOX4052A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- MSOX4052A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- MSOX4052A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- MSOX4052A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode (1 GHz and 1.5 GHz models only)
- MSOX4052A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- MSOX4052A - DSOX4FLEX - FlexRay serial triggering and decode
- MSOX4052A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- MSOX4052A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- MSOX4052A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- MSOX4052A - DSOXDVM - 3-digit voltmeter (DVM)
- MSOX4052A - DSOX4PWR - Power analysis application
- MSOX4052A - DSOX4MASK - Mask limit testing
- MSOX4052A - DSOX4VID - Enhanced video/TV application package
- MSOX4052A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- MSOX4052A - DSOX4USBSQ - USB 2.0 signal quality test option
- MSOX4052A - DSOXEDK - Education training kit
- MSOX4052A - DSOX4B3T52U - Bandwidth upgrade 350 MHz to 500 MHz, 2 ch (License Only)
- MSOX4052A - DSOX4B2T32U - Bandwidth upgrade 200 MHz to 350 MHz, 2 ch (Service center)
- MSOX4052A - DSOX4B2T52U - Bandwidth upgrade 200 MHz to 500 MHz, 2 ch (Service center)
- MSOX4052A - N8900A - Infiniium Offline oscilloscope analysis software
- MSOX4052A - 64997A - Keysight spectrum visualizer (KSV)
- MSOX4052A - 89601B - Vector signal analyzer software (version 16 and higher)
- MSOX4052A - 33503A - BenchLink waveform builder pro and basic
| Model | MSOX4052A |
|---|

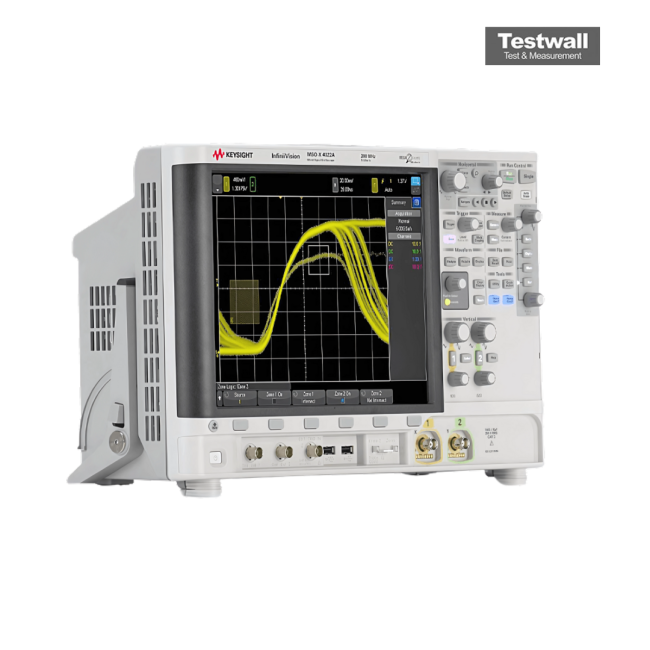

The Keysight (Agilent) MSOX4052A Oscilloscope features a 500 MHz bandwidth, 2 analog plus 16 digital channels, and a high-speed waveform update rate of 1,000,000 wfms/s. Its 12.1-inch capacitive touch screen with Zone touch triggering provides seamless signal analysis. MegaZoom IV smart memory, 4 Mpts memory, and full upgradability make it a future-proof, multi-functional instrument.
Designed for advanced debugging, it includes segmented memory, arbitrary waveform generator, DVM, serial trigger/analysis, and more. Capture elusive signal behavior with precision and ease.
Testwall can supply the used Keysight (Agilent) MSOX4052A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX4052A.
