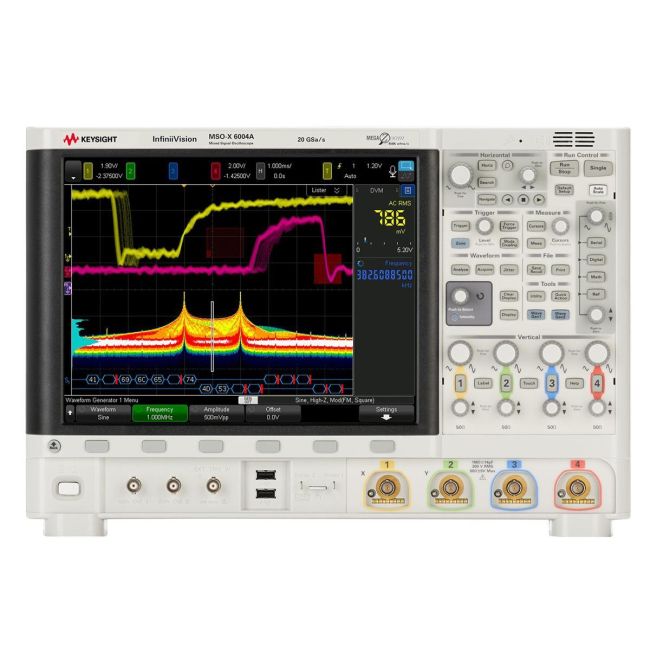

Keysight (Agilent) MSOX6004A
Mixed Signal Oscilloscope 6GHz, 20 GS/s, 4 Channel
1 GHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
20 GSa/s Maximum Sample Rate
4 Mpts (standard), up to 1 Gpts with memory upgrade Maximum Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 20 GSa/s |
| Maximum Memory Depth | 4 Mpts (standard), up to 1 Gpts with memory upgrade |
| Display | 12.1-inch capacitive touch screen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Triggering | Advanced triggering including I2C, SPI, UART, CAN, LIN, USB, and more |
| Vertical Resolution | 8-bit (12-bit with high-resolution mode) |
| Connectivity | USB, LAN (LXI), GPIB (optional), SD card slot |
Keysight Technologies MSOX6004A Options:
- MSOX6004A - DSOX6B10T254BW - 1.0 to 2.5 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B10T404BW - 1.0 to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B10T604BW - 1.0 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B25T404BW - 2.5 to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B25T604BW - 2.5 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6B40T604BW - 4.0 to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- MSOX6004A - DSOX6APPBNDL - Software application bundle (includes DSOX6EMBD, DSOX6COMP, DSOX6USBFL, DSOX6USBH, DSOX6AUTO, DSOX6FLEX, DSOX6AUDIO, DSOX6AERO, DSOX6JITTER, DSOX6WAVEGEN2, DSOX6PWR, DSOX6MASK, DSOX6USBSQ, DSOX6VID, DSOX6SENSOR, DSOX6CXPI, DSOX6NRZ, DSOX6FRA)
- MSOX6004A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX6004A - DSOX6AUDIO - Audio serial triggering and analysis (I2S)
- MSOX6004A - DSOX6AUTO - Automotive serial triggering and analysis (CAN, CAN-dbc, CAN-FD, LIN)
- MSOX6004A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX6004A - DSOX6EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX6004A - DSOX6FLEX - FlexRay serial triggering and analysis
- MSOX6004A - DSOX6SENSOR - SENT (Single Edge Nibble Transmission) triggering and analysis
- MSOX6004A - DSOX6CXPI - CXPI triggering and decode
- MSOX6004A - DSOX6USBFL - USB 2.0 Full/Low Speed serial decode and triggering
- MSOX6004A - DSOX6USBH - USB 2.0 Hi-Speed serial decode and triggering
- MSOX6004A - DSOX6UPD - USB PD serial decode and triggering
- MSOX6004A - DSOX6NRZ - User-definable Manchester/NRZ triggering and decode
- MSOX6004A - DSOX6JITTER - Jitter and real time eye diagram analysis
- MSOX6004A - DSOX6MASK - Mask limit testing
- MSOX6004A - DSOX6FRA - Frequency Response Analysis (FRA)
- MSOX6004A - DSOX6PWR - Power analysis application
- MSOX6004A - DSOX6USBSQ - USB 2.0 signal quality test
- MSOX6004A - DSOX6VID - Enhanced video/TV application package
- MSOX6004A - DSOX6WAVEGEN2 - Dual channel WaveGen 20 MHz AWG
- MSOX6004A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade
- MSOX6004A - N8900A - Infiniium offline oscilloscope analysis software
- MSOX6004A - N5467B/C - User-defined Application (UDA) PC software
- MSOX6004A - BV0004B - BenchVue oscilloscopes application
| Model | MSOX6004A |
|---|
The Keysight (Agilent) MSOX6004A Mixed Signal Oscilloscope features 6 GHz bandwidth, 12.1-inch multi-touch screen, and 450,000 waveforms/s update rate, delivering superb signal fidelity and real-time debugging.
It includes a built-in 3-digit DVM, jitter analysis option, and a low noise floor of 210 µVrms at 1 mV/div, perfect for capturing rare signal events.
Testwall can supply the used Keysight (Agilent) MSOX6004A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX6004A.
