Keysight (Agilent) N3300A
| Attribute | Value |
|---|---|
| Maximum Voltage | 600 V |
| Maximum Current | 120 A |
| Maximum Power | 1800 W |
| Number of Load Modules Supported | Up to 6 load modules |
| Form Factor | Mainframe (requires load modules) |
| Interface | GPIB, RS-232 |
| Operating Modes | Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP) |
| Input Voltage (AC Mains) | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | 425 mm x 177 mm x 497 mm (4U rack-mount) |
Keysight Technologies N3300A Options:
- N3300A - UJ1 - 8 mm screw terminal connector
- N3300A - 800 - Rack-mount kit for two N3301A Mainframes mounted side-by-side (p/n 5061-9694 and 5062-3978)
- N3300A - 908 - Rack-mount kit (Two p/n 5062-3974 for a N3300A, or p/n 5062-3960 for one N3301A); for the N3301A, the kit includes a blank filler panel
- N3300A - 909 - Rack-mount kit with handles for N3300A (Two p/n 5062-3975)
- N3300A - 910 - Extra manual set, including one each of the operating manual, programming reference manual, and service manual
| Model | N3300A |
|---|

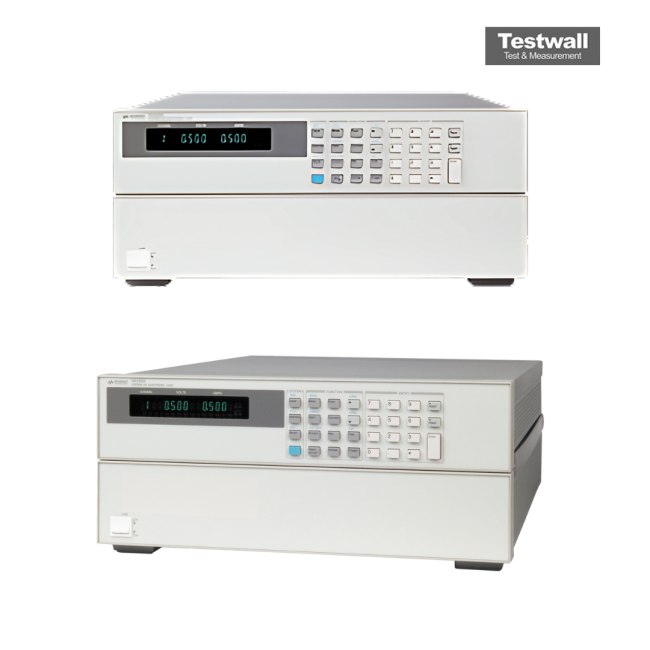

The Keysight (Agilent) N3300A is a full-rack width mainframe featuring six configurable slots supporting N330x series modules ranging from 150 W to 600 W, delivering up to 1,800 W total power. Compatible modules include N3302A, N3303A, N3304A, N3305A, N3306A, and N3307A, enabling flexible, high-performance DC electronic load systems. It supports simultaneous measurement of multiple outputs using built-in capabilities and a single GPIB address for complete control and read-back of all modules.
Ideal for testing multiple output DC power supplies and DC-DC converters with fast, accurate programming and read-back, the N3300A streamlines high-volume test setups.
Testwall can supply the used Keysight (Agilent) N3300A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N3300A.
