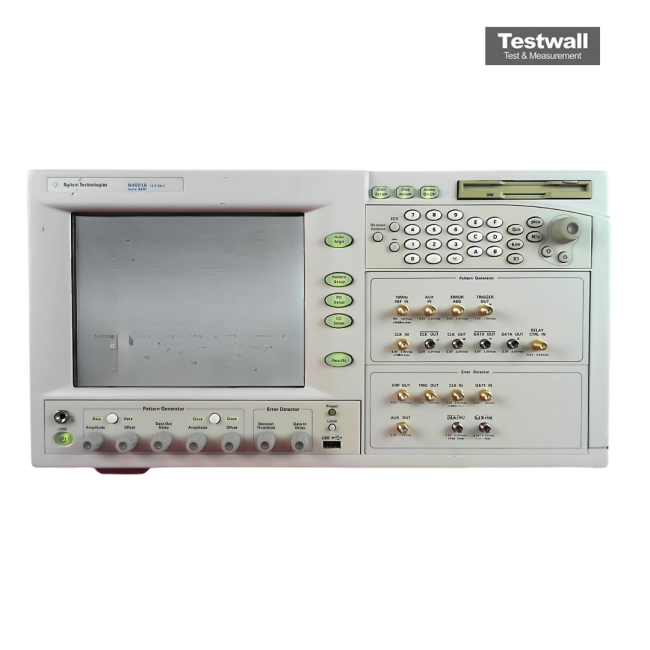

Keysight (Agilent) N4901A
| Attribute | Value |
|---|---|
| Data Rate Range | 150 Mb/s to 3.2 Gb/s |
| Output Voltage Swing | 0.3 V to 2.0 V (differential peak-to-peak) |
| Pattern Length | Up to 2^31-1 PRBS and user-defined patterns |
| Output Channels | 1 differential output channel (Data and Data-bar) |
| Clock Source | Internal and external clock reference supported |
| Jitter Injection | Sinusoidal jitter injection capability included |
| Interface | GPIB, USB, and LAN (LXI compliant) |
| Display | Built-in color LCD front panel display |
| Power Requirements | 100–240 V AC, 50/60 Hz, approximately 150 W |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Model | N4901A |
|---|
The Keysight (Agilent) N4901A offers a frequency range of 150Mb/s to 13.5Gb/s with true differential data generation and analysis. It features jitter modulation up to 200ps (DC to 1GHz), low intrinsic jitter <1ps RMS, and ultra-fast transition time under 25ps. An integrated CDR supports various data rate ranges, and the measuring suite ensures precise results.
Its user-friendly Windows XP interface and expandable software platform make the N4901A adaptable to future applications and trends.
Testwall can supply the used Keysight (Agilent) N4901A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4901A.
