Keysight (Agilent)

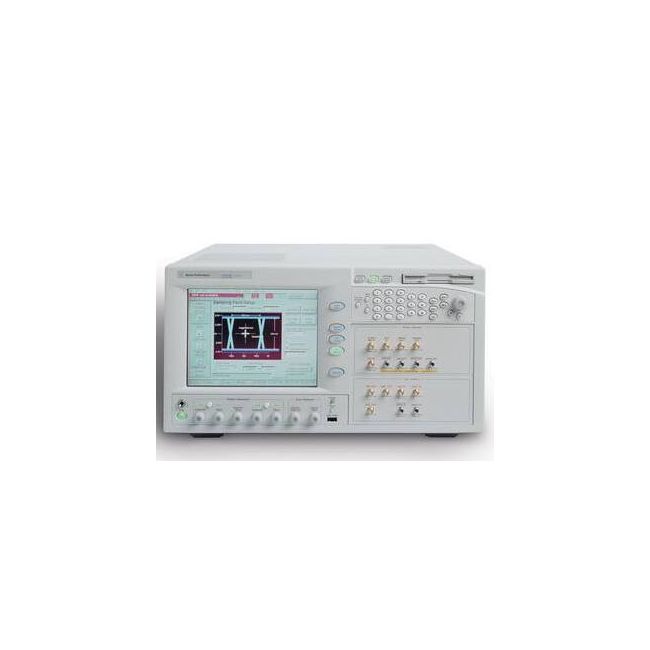

Keysight (Agilent) N4901B
Serial BERT 13.5Gb/s 150Mb/s - 13.5Gb/s
150 Mb/s to 3.2 Gb/s Data Rate Range
0.3 V to 2.0 V (differential, peak-to-peak) Output Voltage Swing
Up to 2^31-1 bits (PRBS), programmable patterns up to 32 Mb Pattern Length
1 differential data output pair (Data and Data-bar) Output Channels
Differential clock output synchronized to data output Clock Output
| Attribute | Value |
|---|---|
| Data Rate Range | 150 Mb/s to 3.2 Gb/s |
| Output Voltage Swing | 0.3 V to 2.0 V (differential, peak-to-peak) |
| Pattern Length | Up to 2^31-1 bits (PRBS), programmable patterns up to 32 Mb |
| Output Channels | 1 differential data output pair (Data and Data-bar) |
| Clock Output | Differential clock output synchronized to data output |
| Jitter Injection | Sinusoidal jitter, spread spectrum clocking, and bounded uncorrelated jitter injection capability |
| Interface | GPIB, LAN (LXI Class C compliant), USB |
| Reference Clock Input | External reference clock input for synchronization with external sources |
| Operating Temperature | 0°C to 55°C |
| Power Requirements | 100–240 V AC, 50/60 Hz, approximately 150 W maximum |
| Model | N4901B |
|---|
The Keysight (Agilent) N4901B Serial BERT 13.5 Gb/s features true differential I/Os, advanced jitter analysis, and integrated CDR for precise BER testing. It supports a broad frequency range, addressing high-speed serial applications with unmatched performance and flexibility.
This instrument supports testing for semiconductor and communication technologies, enabling robust and future-ready performance validation across 10 Gb/s domains.
Testwall can supply the used Keysight (Agilent) N4901B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4901B.
