Keysight (Agilent)

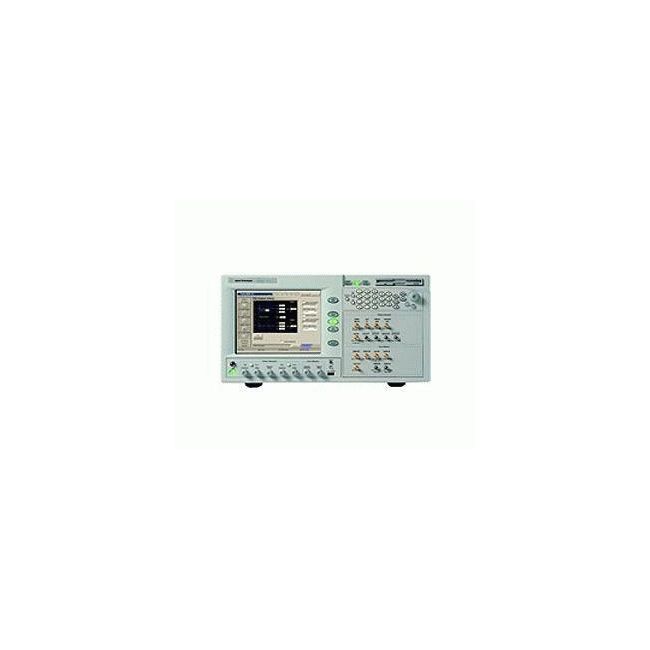

Keysight (Agilent) N4903A-G13
12.5Gbps Pattern Generator
G13 - BERT System with Clock Recovery Option
150 Mb/s to 12.5 Gb/s Data Rate Range
Up to 2.0 V peak-to-peak (into 50 Ω) Pattern Generator Output Amplitude
622 Mb/s to 12.5 Gb/s Clock Recovery Input Frequency Range
10⁻¹ to 10⁻¹² Bit Error Ratio Measurement Range
| Attribute | Value |
|---|---|
| Option | G13 - BERT System with Clock Recovery |
| Data Rate Range | 150 Mb/s to 12.5 Gb/s |
| Pattern Generator Output Amplitude | Up to 2.0 V peak-to-peak (into 50 Ω) |
| Clock Recovery Input Frequency Range | 622 Mb/s to 12.5 Gb/s |
| Bit Error Ratio Measurement Range | 10⁻¹ to 10⁻¹² |
| Jitter Injection Capability | Sinusoidal, Random, and Spread Spectrum Jitter |
| Output Rise/Fall Time | Typically less than 35 ps (20%–80%) |
| Interface | GPIB, USB, and LAN (LXI Class C Compliant) |
| Operating Temperature | 0 °C to 40 °C |
| Power Requirements | 100–240 V AC, 50/60 Hz, approximately 350 W maximum |
| Model | N4903A-G13 |
|---|
The Keysight (Agilent) N4903A-G13 supports data rates from 150 Mb/s to 12.5 Gb/s and features a comprehensive jitter injection suite, making it ideal for high-speed serial interface testing.
It enables interference channel testing with ISI and sinusoidal signals and offers automated compliance testing for various serial standards.
Testwall can supply the used Keysight (Agilent) N4903A-G13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4903A-G13.
