Keysight (Agilent)

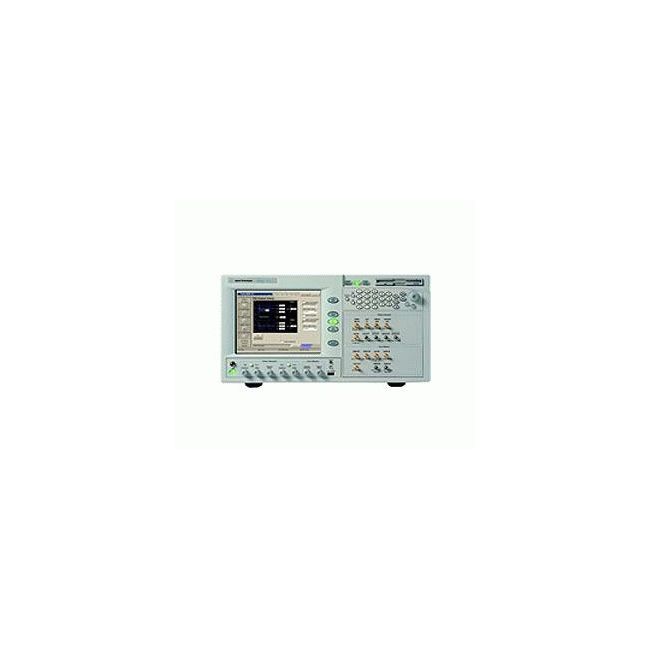

Keysight (Agilent) N4906B-012-102
12.5Gb/s Serial BERT
100 Mb/s to 12.5 Gb/s Data Rate Range
0.25 V to 2.0 V (differential peak-to-peak) Output Voltage Swing
Up to 2^31-1 PRBS Pattern Length
1 differential output channel Channel Configuration
Sinusoidal, spread spectrum, and bounded uncorrelated jitter injection capability Jitter Injection
| Attribute | Value |
|---|---|
| Data Rate Range | 100 Mb/s to 12.5 Gb/s |
| Output Voltage Swing | 0.25 V to 2.0 V (differential peak-to-peak) |
| Pattern Length | Up to 2^31-1 PRBS |
| Channel Configuration | 1 differential output channel |
| Jitter Injection | Sinusoidal, spread spectrum, and bounded uncorrelated jitter injection capability |
| Interface | USB 2.0 and LAN (LXI compliant) |
| Clock Source | Internal and external clock reference |
| Rise/Fall Time | Adjustable, approximately 30 ps (20%–80%) |
| Operating Temperature | 0°C to 55°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Model | N4906B-012-102 |
|---|
The Keysight (Agilent) N4906B-012-102 offers high-speed testing with data rates from 150 Mb/s to 12.5 Gb/s, ideal for serial interface validation. It integrates CDR, supports PRBS patterns up to 2^31-1, and delivers 32 Mbit pattern depth.
Designed for advanced signal integrity analysis, it includes versatile interfaces: LAN, USB, and GPIB, enhancing connectivity and ease of test setup.
Testwall can supply the used Keysight (Agilent) N4906B-012-102, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4906B-012-102.
