Keysight (Agilent) N5106A
| Attribute | Value |
|---|---|
| Frequency Range | 400 MHz to 6 GHz |
| Number of Output Channels | Up to 4 RF output channels |
| Instantaneous Bandwidth | Up to 160 MHz |
| Output Power Range | -110 dBm to +10 dBm |
| DAC Resolution | 16-bit digital-to-analog converter |
| Sample Rate | Up to 400 MSa/s |
| Interface/Connectivity | PXI-H (High Performance PXI) form factor, PCIe interface |
| Form Factor | PXIe (PXI Express) module, 3U, 1-slot |
| Operating Temperature | 0°C to 55°C |
| Software Compatibility | Compatible with Keysight Signal Studio software and IVI-COM/IVI-C drivers |
Keysight Technologies N5106A Options:
- N5106A - 611 - One DSP block on one baseband generator card
- N5106A - 612 - Two DSP blocks on one baseband generator card
- N5106A - 613 - Three DSP blocks on two baseband generator cards
- N5106A - 614 - Four DSP blocks on two baseband generator cards
- N5106A - 615 - Five DSP blocks on three baseband generator cards
- N5106A - 616 - Six DSP blocks on three baseband generator cards
- N5106A - 617 - Seven DSP blocks on four baseband generator cards
- N5106A - 618 - Eight DSP blocks on four baseband generator cards
- N5106A - 619 - Nine DSP blocks on five baseband generator cards
- N5106A - 620 - Ten DSP blocks on five baseband generator cards
- N5106A - 621 - Eleven DSP blocks on six baseband generator cards
- N5106A - 622 - Twelve DSP blocks on six baseband generator cards
- N5106A - 632 - One IO card that provides two IO ports. Each IO port has both digital IO and analog I/Q
- N5106A - 634 - Two IO cards that provide four IO ports. Each IO port has both digital IO and analog I/Q
- N5106A - EFP - Baseband generation
- N5106A - JFP - Calibrated AWGN
- N5106A - QFP - Fading with SISO channel models
- N5106A - RFP - Mobile WiMAX MIMO channel models
- N5106A - TFP - LTE MIMO channel models
- N5106A - 2B2 - 2x2 MIMO baseband generation and channel emulation bundle (includes options 616, 634, EFP, JFP, and QFP)
- N5106A - LTE - LTE MIMO software application bundle (adds N5106A-TFP LTE MIMO channel models and Signal Studio model N7624B 3GP LTE with options 6FP, GFP, and RFP)
- N5106A - WMX - Mobile WiMAX MIMO software application bundle (adds N5106A-RFP WiMAX MIMO channel models and Signal Studio model N7615B 802.16 WiMAX with options 6FP, EFP, QFP, and RFP)
- N5106A - 181 - USB Accessory Kit (keyboard, optical mouse, disk drive DVD-ROM/CD-RW)
- N5106A - 1CP - Rack Mount Flange and Front Handle Kit
- N5106A - 1CR - Rack Mount Slide Kit
- N5106A - 720 - Cable, SMB (female) to BNC (male), 50Ω 1.0m (external reference/trigger cable)
- N5106A - CD1 - Documentation DVD
- N5106AK - 031 - Enables one DSP block on one baseband generator card (upgrade)
- N5106AK - 032 - Adds one baseband generator card (upgrade)
- N5106AK - 034 - Adds one IO card that provides two IO ports with both digital IO and analog I/Q (upgrade)
| Model | N5106A |
|---|

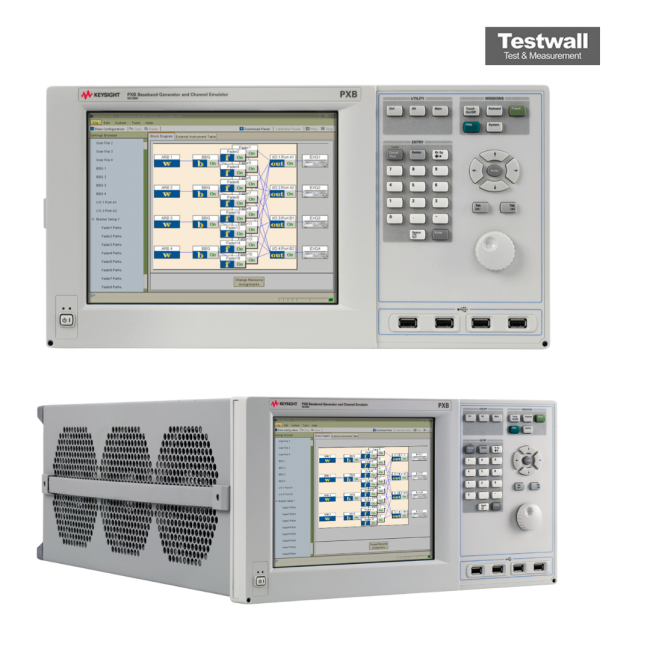

The Keysight (Agilent) N5106A PXB provides unmatched test flexibility with real-time channel emulation and multi-format baseband generation. Featuring up to 120 MHz modulation bandwidth, 512 Msa memory per channel, and support for six BBGs and eight faders, it enables complex test scenarios including MIMO and interference testing. Signal Studio and MATLAB® integration support a broad array of standards such as LTE, HSPA, and GPS.
This system simplifies setup with integrated routing, summing, sync, and calibration, removing the need for multiple instruments. Its reconfigurable architecture supports over 20 configurations via a user-friendly interface.
Testwall can supply the used Keysight (Agilent) N5106A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5106A.
