Keysight (Agilent)

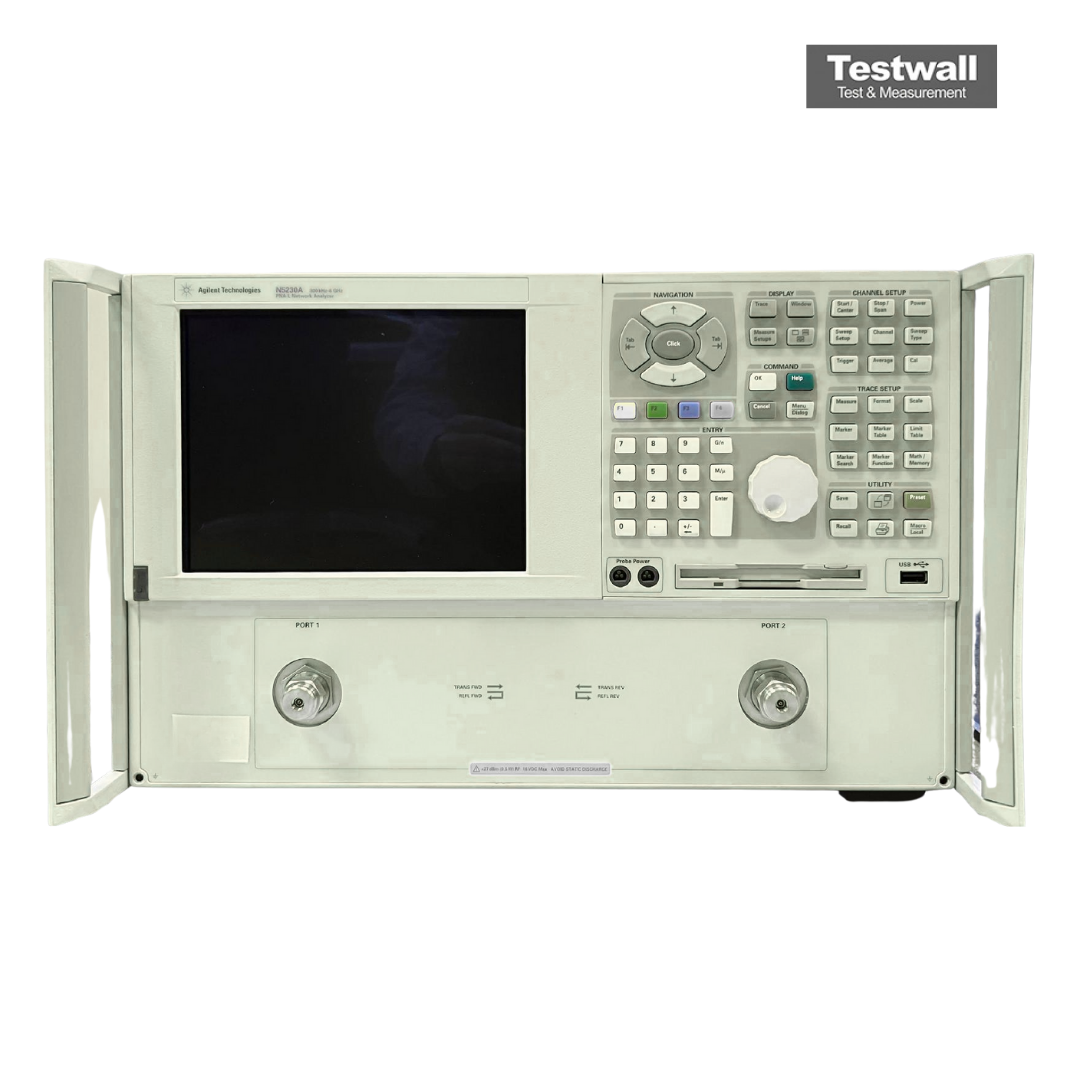

Keysight (Agilent) N5230A-225
300 kHz to 20 GHz, Network Analyzer, 3.5 mm (m)
300 kHz to 13.5 GHz Frequency Range
2-Port Number of Ports
Up to 122 dB Dynamic Range
-85 dBm to +20 dBm Output Power Range
Up to 42 µs per point (swept mode) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 13.5 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Measurement Speed | Up to 42 µs per point (swept mode) |
| Trace Noise | 0.004 dB RMS typical |
| Connector Type | 3.5 mm (f) test port connectors |
| IF Bandwidth | 1 Hz to 40 kHz |
| Number of Points per Sweep | 1 to 16,001 points |
| Form Factor | Portable/Benchtop, 2U Rack-Mountable |
Keysight Technologies N5230A-225 Options:
- N5230A-225 - 020 - Standard test set and standard power range, 300 kHz to 6 GHz
- N5230A-225 - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230A-225 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230A-225 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230A-225 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A-225 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230A-225 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230A-225 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230A-225 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230A-225 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230A-225 - 080 - Fast sweep triggering option
- N5230A-225 - H08 - Special configuration option
- N5230A-225 - H11 - Special configuration option
| Model | N5230A-225 |
|---|
The Keysight (Agilent) N5230A-225 is a standard PNA‑L 2-port analyzer offering performance up to 50 GHz. It features a single internal source and supports optional source/receiver attenuators and bias-tees, suitable for scalable RF test setups.
Designed without low-frequency extension, it provides frequency support up to 50 GHz with modular architecture, enabling future configuration flexibility with bias and attenuator options.
Testwall can supply the used Keysight (Agilent) N5230A-225, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230A-225.
