Keysight (Agilent)

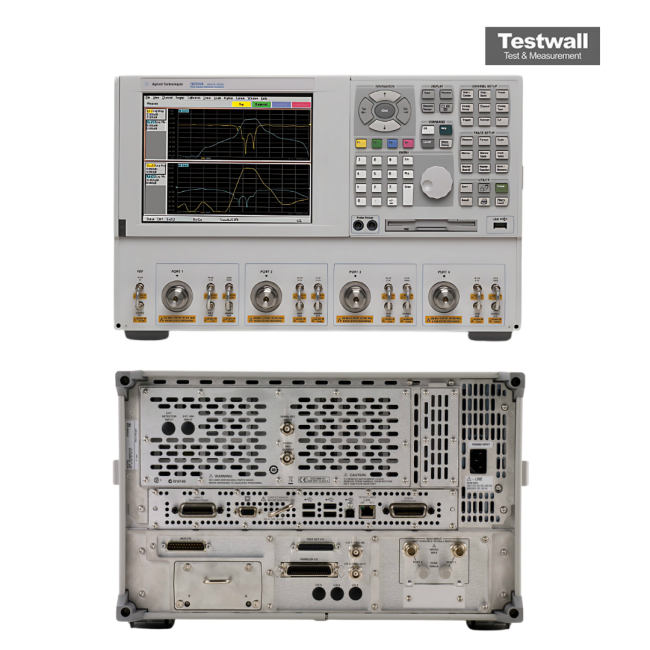

Keysight (Agilent) N5230A-240
300 kHz to 20 GHz, Network Analyzer, 3.5 mm (m)
300 kHz to 20 GHz Frequency Range
4 Number of Ports
122 dB Dynamic Range
-85 dBm to +20 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | 122 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Trace Noise | 0.004 dB RMS |
| Test Port Connector Type | 3.5 mm (f) |
| Number of Display Channels | 16 |
| IF Bandwidth Range | 1 Hz to 40 kHz |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies N5230A-240 Options:
- N5230A-240 - 020 - Standard test set and standard power range, 300 kHz to 6 GHz
- N5230A-240 - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230A-240 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230A-240 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230A-240 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A-240 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230A-240 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230A-240 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230A-240 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230A-240 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230A-240 - 080 - Noise figure measurement application
| Model | N5230A-240 |
|---|
The Keysight (Agilent) N5230A-240 is a 2-port PNA-L analyzer designed for high-frequency testing up to 50 GHz, equipped with bias-tees and high-power attenuator options. It is tailored for DC-biased or pulsed component measurements without low-frequency extension.
Spanning 10 MHz to 50 GHz, this configuration supports enhanced source/receiver attenuation and bias-tees, ideal for accurate testing of active or pulsed RF devices.
Testwall can supply the used Keysight (Agilent) N5230A-240, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230A-240.
