Keysight (Agilent)
Keysight (Agilent) N5230A-420
10 MHz to 40 GHz, Network Analyzer, 2.4 mm (m)
300 kHz to 20 GHz Frequency Range
4 Number of Ports
123 dB Dynamic Range
-85 dBm to +20 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | 123 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Trace Noise | 0.004 dB RMS |
| Connector Type | 3.5 mm (f) |
| Test Port Power Accuracy | ±0.9 dB |
| IF Bandwidth Range | 1 Hz to 40 kHz |
| Number of Data Points | 1 to 20,001 |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies N5230A-420 Options:
- N5230A-420 - 020 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A-420 - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230A-420 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230A-420 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230A-420 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A-420 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230A-420 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230A-420 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230A-420 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230A-420 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230A-420 - 080 - Time domain analysis
- N5230A-420 - H08 - Rack mount kit without handles
- N5230A-420 - H11 - Rack mount kit with handles
| Model | N5230A-420 |
|---|

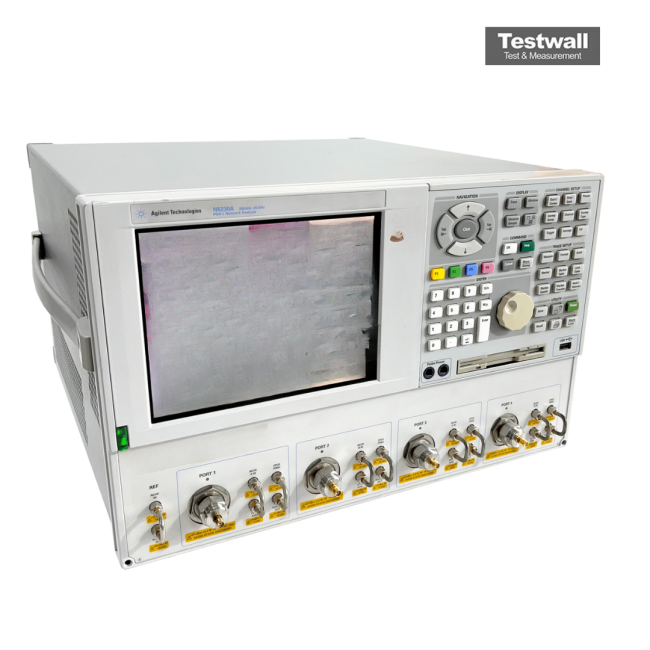

The Keysight (Agilent) N5230A-420 is a full 4-port PNA-L network analyzer equipped with bias-tees, attenuators, and low-frequency support. It is engineered for complex multi-port DUT testing with extended capability up to 50 GHz.
Ideal for DC, pulsed, and low-frequency testing, it combines advanced attenuation and bias technologies for precise RF analysis of multi-port devices.
Testwall can supply the used Keysight (Agilent) N5230A-420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230A-420.
