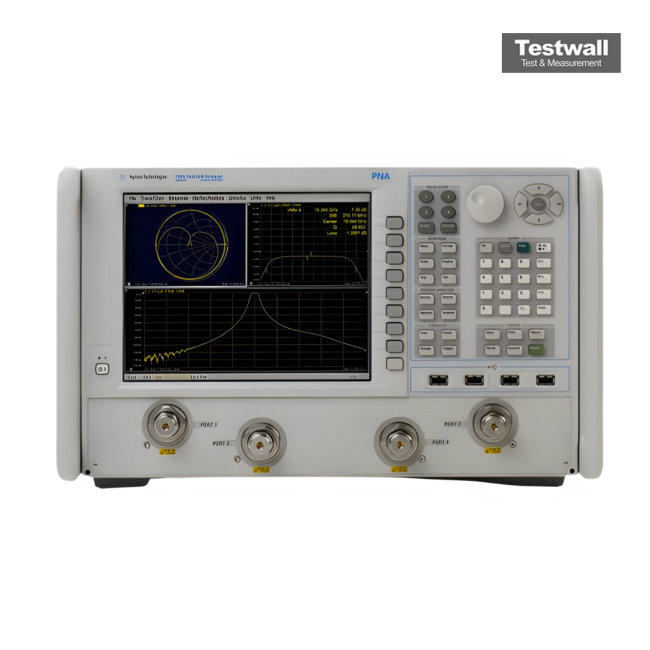

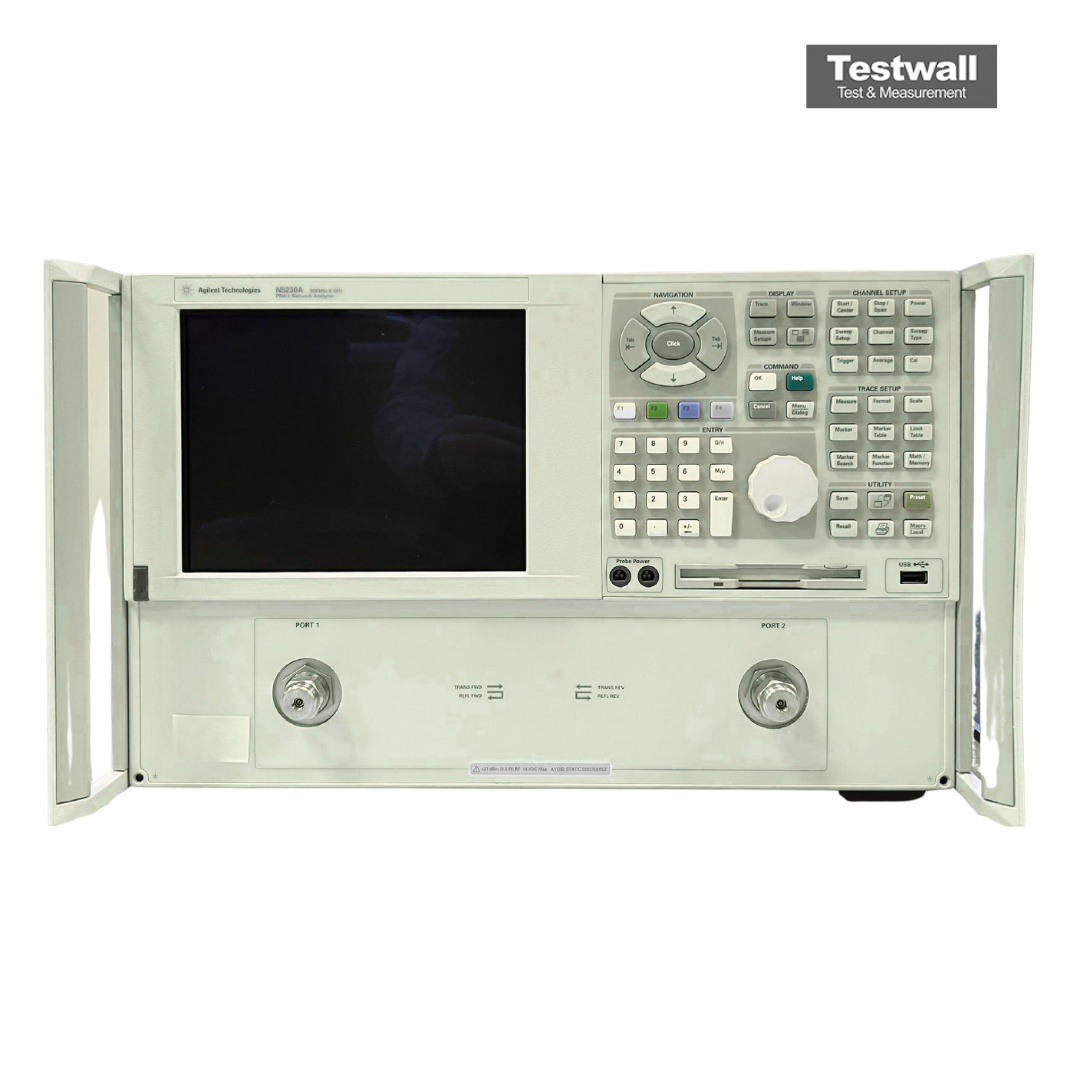

Keysight (Agilent) N5230C-225
2-port, 20 GHz PNA-L Network Analyzer, 3.5 mm (m)
300 kHz to 13.5 GHz Frequency Range
2-port Number of Ports
Up to 122 dB Dynamic Range
-85 dBm to +20 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 13.5 GHz |
| Number of Ports | 2-port |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | Up to 42 µs per point |
| Connector Type | 3.5 mm (f) test port connectors |
| Display | 10.4-inch XGA color LCD touchscreen |
| Number of Points per Sweep | 1 to 32,001 points |
| Power Supply | 100–240 V AC, 50/60 Hz |
Keysight (Agilent) N5230C-225 Options:
- N5230C-225 - 1CP - Rack Mounting For Instruments Equipped With Handles
- N5230C-225 - 1CM - Rack Mounting For Instruments Not Equipped With Handles
| Model | N5230C-225 |
|---|
The Keysight (Agilent) N5230C-225 is a compact 2-port PNA‑L analyzer supporting standard S‑parameter measurements up to 50 GHz. It provides reliable, cost-effective performance for basic RF validation without bias or low-frequency capabilities.
Featuring a simple modular test-set, it delivers 2-port RF analysis up to 50 GHz, ideal for labs focused on essential component verification.
Testwall can supply the used Keysight (Agilent) N5230C-225, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230C-225.
