Keysight (Agilent) N5231A-400

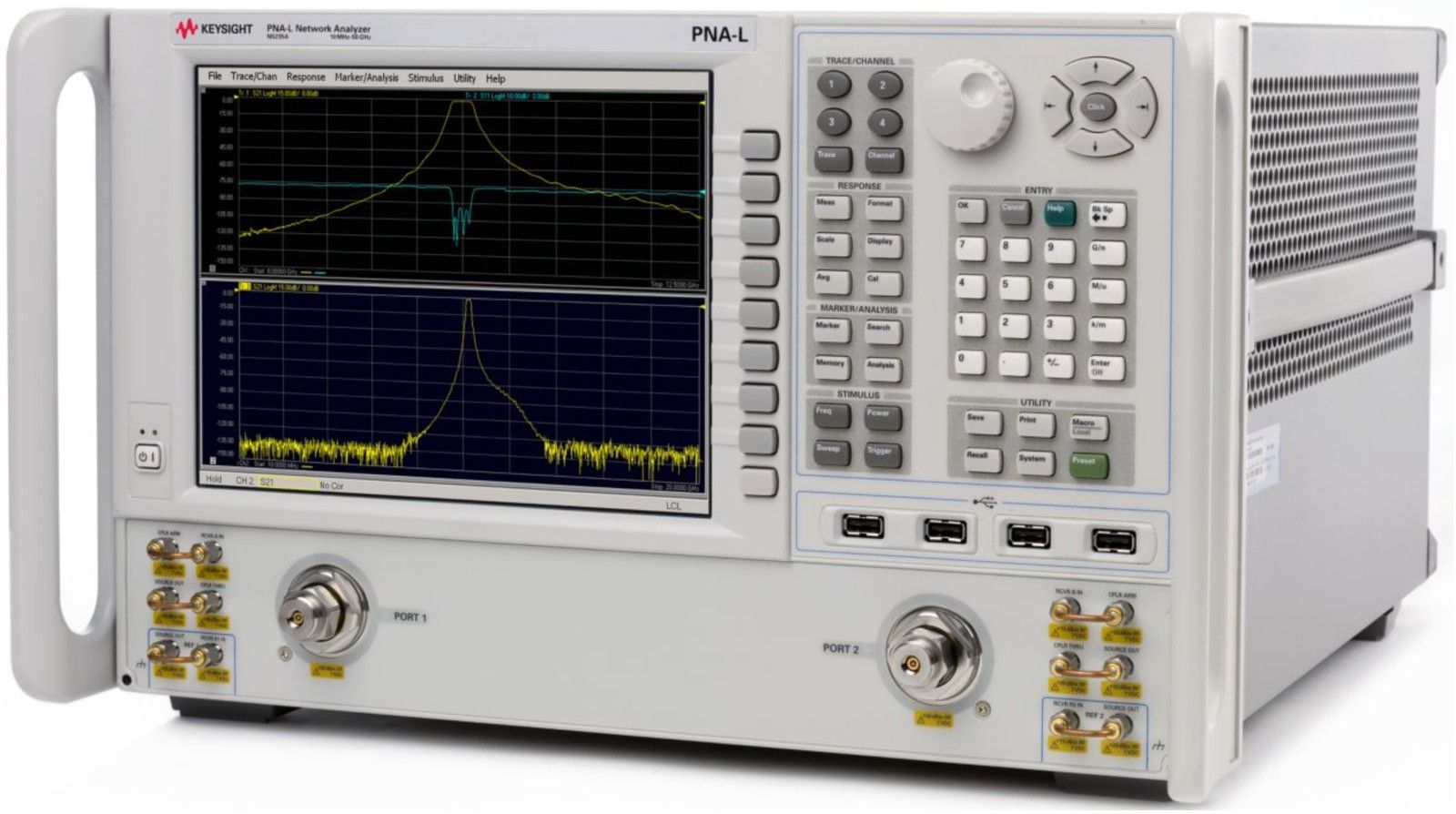

4-port, 300 kHz to 13.5 GHz PNA-L Network Analyzer, Option 400 (representative image)
300 kHz to 13.5 GHz Frequency Range
4 Number of Ports
118 dB (spec.) Dynamic Range
-30 dBm … +13 dBm Output Power Range
Option 400: standard test set Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 13.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | 118 dB (spec.) |
| Output Power Range | -30 dBm … +13 dBm |
| Configuration | Option 400: standard test set |
| Internal Sources | 1 |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Trace Noise | 0.004 dB rms |
| Measurement Parameters | S-parameters, group delay |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, 2× GPIB, USB |
| Series | PNA-L |
Keysight (Agilent) N5231A-400 Options:
- N5231A - 200 - 2-port base model with standard test set
- N5231A - 216 - To base model, adds front-panel jumpers, and source attenuators (extended power range)
- N5231A - 400 - 4-port base model with standard test set
- N5231A - 416 - To base model, adds front-panel jumpers, and source attenuators (extended power range)
The Keysight (Agilent) N5231A-400 is a 4-port PNA-L vector network analyzer covering 300 kHz to 13.5 GHz. Option 400 configuration: standard test set.
Testwall can supply the used Keysight (Agilent) N5231A-400, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5231A-400.
