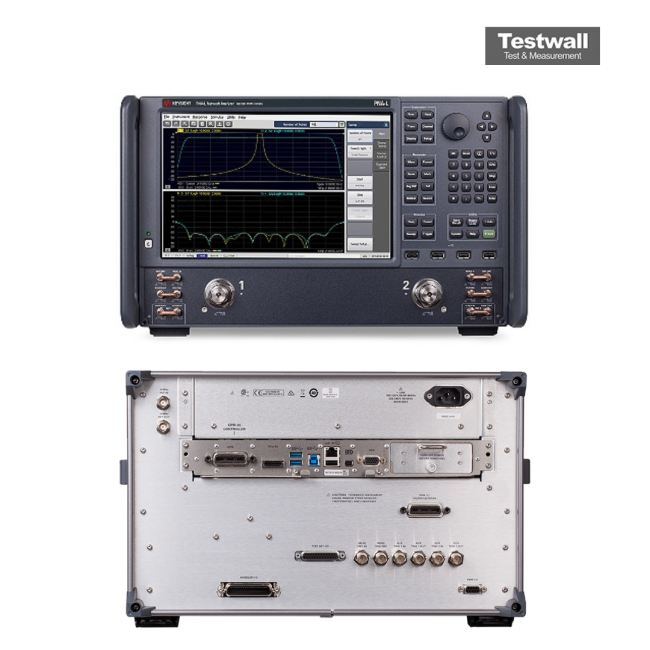

Keysight (Agilent) N5232B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | 123 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.004 dB RMS |
| Test Port Connector Type | 3.5 mm (f) |
| Measurement Speed (25 Points, 10 Hz IFBW) | 4 ms |
| IF Bandwidth Range | 1 Hz to 1 MHz |
| Power Accuracy | ±0.5 dB |
| Operating Temperature Range | 0°C to 55°C |
| Measurement Parameters | S-parameters, group delay, gain compression |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5232B-200 | 2 | 300 kHz to 20 GHz | standard test set |
| N5232B-216 | 2 | 300 kHz to 20 GHz | configurable test set, source step attenuators |
| N5232B-400 | 4 | 300 kHz to 20 GHz | standard test set |
| N5232B-416 | 4 | 300 kHz to 20 GHz | configurable test set, source step attenuators |
Keysight (Agilent) N5232B PNA-L 20 GHz Network Analyser Options:
- N5232B - 200 - 2-port base model with standard test set
- N5232B - 216 - To base model, adds front-panel jumpers and source attenuators (extended power range)
- N5232B - 400 - 4-port base model with standard test set
- N5232B - 416 - To base model, adds front-panel jumpers and source attenuators (extended power range)
The Keysight (Agilent) N5232B PNA-L 20 GHz Network Analyzer delivers high-performance S-parameter and nonlinear testing for passive components, amplifiers, and frequency converters. Featuring the same firmware core as the PNA series, it balances performance and value for versatile R&D and production use.
Ideal for balanced/differential ports, it performs mixed-mode S-parameter tests without baluns, offering various trace formats and precise imbalance metrics.
Testwall can supply the used Keysight (Agilent) N5232B PNA-L 20 GHz Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5232B PNA-L 20 GHz Network Analyzer.
