Keysight (Agilent) N5245A-419

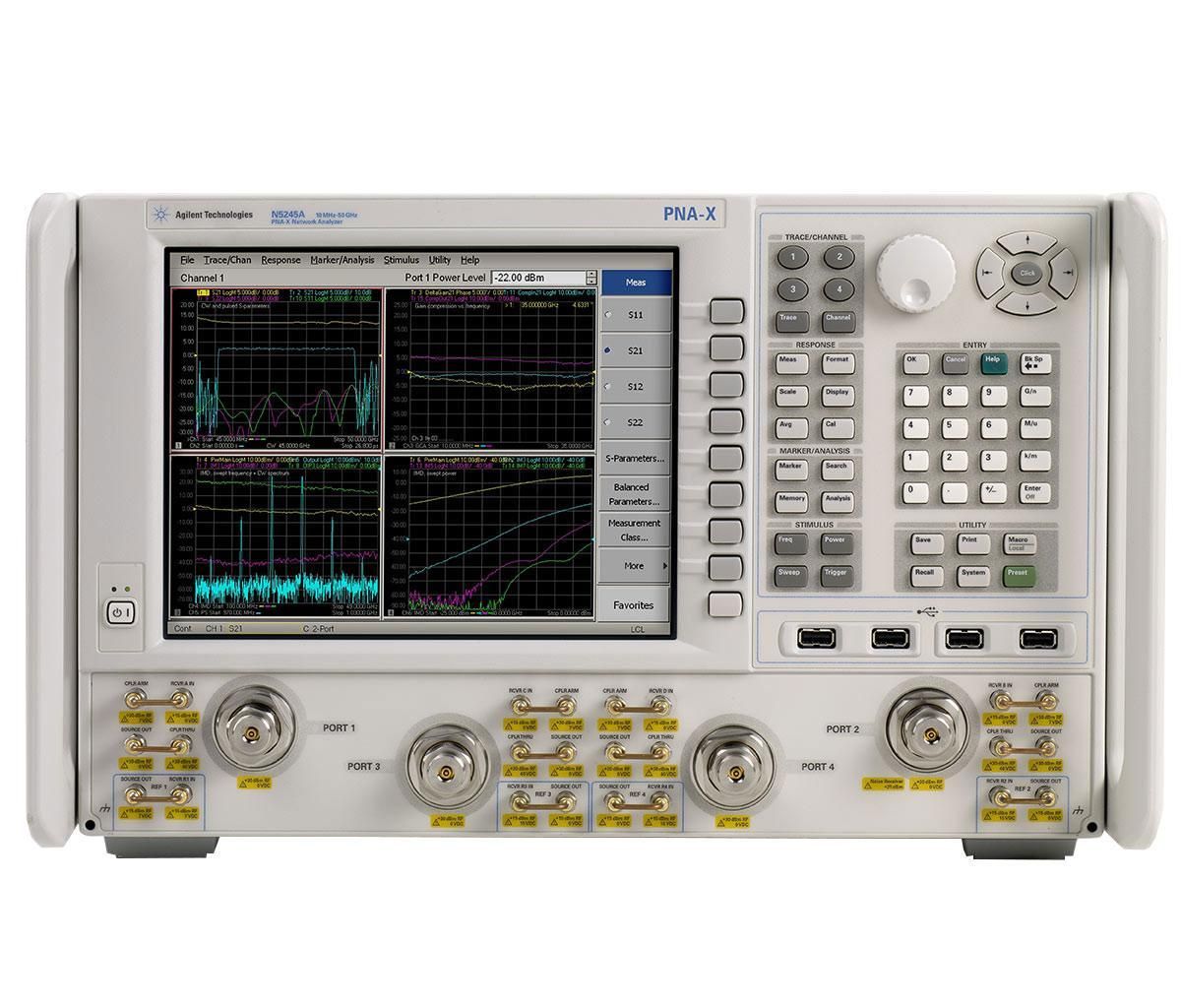

4-port, 10 MHz to 50 GHz PNA-X Network Analyzer, Option 419 (representative image)
10 MHz to 50 GHz Frequency Range
4 Number of Ports
99 dB (spec.) Dynamic Range
max. +13 dBm Output Power Range
Option 419: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators, built-in bias tees Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 4 |
| Dynamic Range | 99 dB (spec.) |
| Output Power Range | max. +13 dBm |
| Configuration | Option 419: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators, built-in bias tees |
| Internal Sources | 2 |
| Impedance | 50 Ω |
| Connector Type | 2.4 mm (m) |
| IF Bandwidth | 1 Hz … 5 MHz |
| Trace Noise | 0.002 dB rms |
| Measurement Parameters | S-parameters, noise figure (opt.), gain compression, IMD, pulsed RF |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, 2× GPIB, USB, VGA |
| Series | PNA-X |
Keysight (Agilent) N5245A-419 Options:
- N5245A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires Option 224 or 423)
- N5245A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5245A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5245A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5245A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5245A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5245A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
The Keysight (Agilent) N5245A-419 is a 4-port PNA-X vector network analyzer covering 10 MHz to 50 GHz. Option 419 configuration: configurable test set (front-panel access loops), source step attenuators (extended power range), receiver step attenuators, built-in bias tees.
Testwall can supply the used Keysight (Agilent) N5245A-419, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5245A-419.
