Keysight (Agilent) N5245B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -90 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.001 dB RMS at 10 Hz IF bandwidth |
| Connector Type | 2.4 mm (male) |
| IF Bandwidth | 1 Hz to 15 MHz |
| Measurement Speed | Up to 42 µs per point |
| Power Level Accuracy | ±0.8 dB |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N5245B Options:
- N5245B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of Option 22x or 42x)
- N5245B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5245B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5245B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5245B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 2-port analyzer
- N5245B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 2-port analyzer, and bias tees
- N5245B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5245B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), and source and receiver attenuators (extended power range)
- N5245B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source (Option 080 recommended), and source and receiver attenuators (extended power range), and bias-tees
- N5245B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 4-port analyzer
- N5245B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 4-port analyzer, and bias tees
- N5245B - H85 - Standard configuration (N5245BS model variant)
| Model | N5245B |
|---|

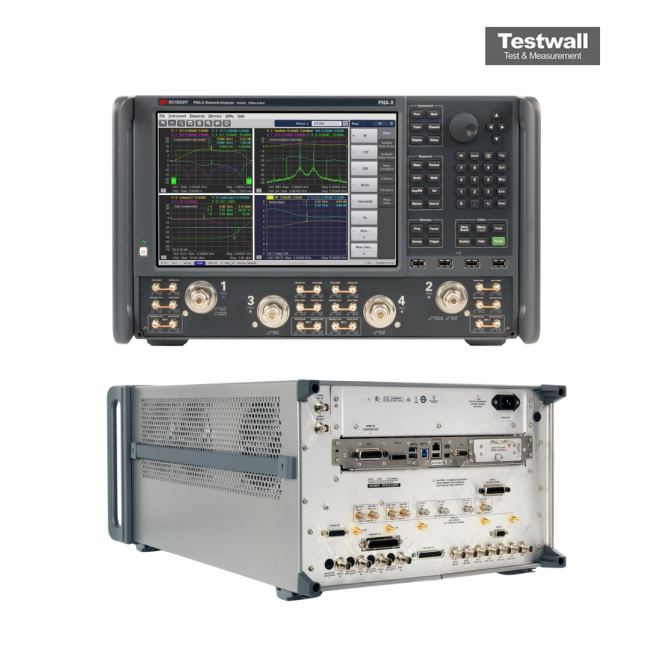

The Keysight (Agilent) N5245B PNA-X is an advanced microwave network analyzer featuring dual internal signal sources, pulse modulators/generators, S-parameter and noise receivers, and extensive RF access. It supports both linear and nonlinear measurements through a single connection setup.
This analyzer simplifies complex RF test environments by integrating multiple instruments into one unit, reducing testing time and ensuring high accuracy for active components like amplifiers, mixers, and converters.
Testwall can supply the used Keysight (Agilent) N5245B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5245B.
