Keysight (Agilent) N6700B
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 400 W |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Form Factor | 2U Half-Rack (Mainframe) |
| Interface | GPIB, LAN (LXI Core), USB |
| Compatible Power Modules | N6720B–N6784A Series DC Power Modules |
| Output Isolation | Up to ±60 VDC from chassis ground |
| Measurement Capabilities | Voltage, Current, and Power Measurement via installed modules |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W x H x D) | 212 mm x 88 mm x 381 mm (8.5 in x 3.5 in x 15 in) |
Keysight Technologies N6700B Options:
- N6700B - 908 - Rack Mount Kit (Required for rack mounting; standard rack mount hardware will not work)
- N6700B - FLR - Filler Panel Kit (Required when you have fewer than 4 modules in a mainframe; each kit contains 3 filler panels)
- N6700B - 0L1 - Full documentation on CD-ROM and printed Users Guide
- N6700B - 0B0 - Full documentation on CD-ROM only; no printed documentation package
- N6700B - 900 - Power Cord, United Kingdom, P/N 8120-1351
- N6700B - 901 - Power Cord, Australia, P/N 8120-1369
- N6700B - 902 - Power Cord, Europe, P/N 8120-1689
- N6700B - 903 - Power Cord, USA, Canada, 120 V, P/N 8120-4383
- N6700B - 904 - Power Cord, USA, Canada, 240 V, P/N 8120-0698
- N6700B - 906 - Power Cord, Switzerland, P/N 8120-2104
- N6700B - 912 - Power Cord, Denmark, P/N 8120-2956
- N6700B - 917 - Power Cord, South Africa, India, P/N 8120-4211
- N6700B - 918 - Power Cord, Japan, P/N 8120-4753
- N6700B - 919 - Power Cord, Israel, P/N 8120-6800
- N6700B - 920 - Power Cord, Argentina, P/N 8120-6869
- N6700B - 921 - Power Cord, Chile, P/N 8120-6980
- N6700B - 922 - Power Cord, China, P/N 8120-8376
- N6700B - 927 - Power Cord, Thailand, P/N 8120-8871
| Model | N6700B |
|---|

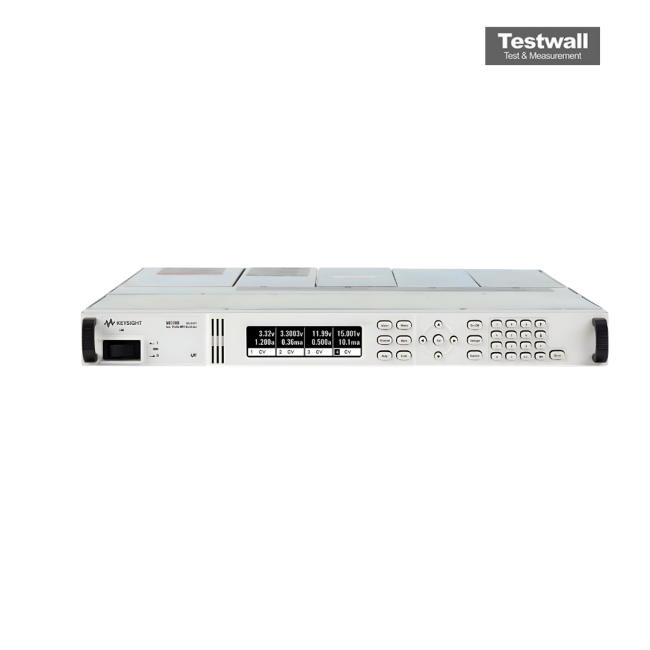

The Keysight (Agilent) N6700B is a 1U high, 4-slot modular power system with 400 W output capacity, supporting up to four N6700 series DC power modules. Featuring GPIB, LAN, USB interfaces, and LXI Class C compliance, it accepts input from 100-240 VAC and offers flexible configuration options with over 20 DC modules available.
This power mainframe is ideal for a variety of precision and basic power applications, with responsive shutdowns and fault handling under 10 µs. Modules must be ordered separately.
Testwall can supply the used Keysight (Agilent) N6700B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6700B.
