Keysight (Agilent) N6701A
| Attribute | Value |
|---|---|
| Number of Output Channels | Up to 4 channels (accepts up to 4 single-output or 2 dual-output power modules) |
| Maximum Output Power | Up to 600W total system output power |
| Output Voltage Range | 0 to 60V DC (dependent on installed power modules) |
| Output Current Range | Up to 50A per channel (dependent on installed power modules) |
| Interface/Connectivity | GPIB, LAN (LXI Core 2011 compliant), and USB interfaces standard |
| Programming Language | SCPI (Standard Commands for Programmable Instruments) |
| Measurement Capability | Built-in voltage and current measurement with data logging capability |
| Protection Features | Overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) |
| Form Factor | 2U half-rack mainframe (can be rack mounted or used as a benchtop unit) |
| Input Power Requirements | 100–240V AC, 50/60Hz, single phase |
Keysight Technologies N6701A Options:
- N6701A - 908 - Rack Mount Kit (Required for rack mounting. Standard rack mount hardware will not work.)
- N6701A - FLR - Filler Panel Kit (Required when you have less than 4 modules in a mainframe. Each filler panel kit contains 3 filler panels.)
- N6701A - 0L1 - Full documentation on CD-ROM and printed Users Guide
- N6701A - 0B0 - Full documentation on CD-ROM only; no printed documentation package
- N6701A - 900 - Power Cord, United Kingdom, P/N 8120-1351
- N6701A - 901 - Power Cord, Australia, P/N 8120-1369
- N6701A - 902 - Power Cord, Europe, P/N 8120-1689
- N6701A - 903 - Power Cord, USA, Canada, 120 V, P/N 8120-4383
- N6701A - 904 - Power Cord, USA, Canada, 240 V, P/N 8120-0698
- N6701A - 906 - Power Cord, Switzerland, P/N 8120-2104
- N6701A - 912 - Power Cord, Denmark, P/N 8120-2956
- N6701A - 917 - Power Cord, South Africa, India, P/N 8120-4211
- N6701A - 918 - Power Cord, Japan, P/N 8120-4753
- N6701A - 919 - Power Cord, Israel, P/N 8120-6800
- N6701A - 920 - Power Cord, Argentina, P/N 8120-6869
- N6701A - 921 - Power Cord, Chile, P/N 8120-6980
- N6701A - 922 - Power Cord, China, P/N 8120-8376
- N6701A - 927 - Power Cord, Thailand, P/N 8120-8871
| Model | N6701A |
|---|

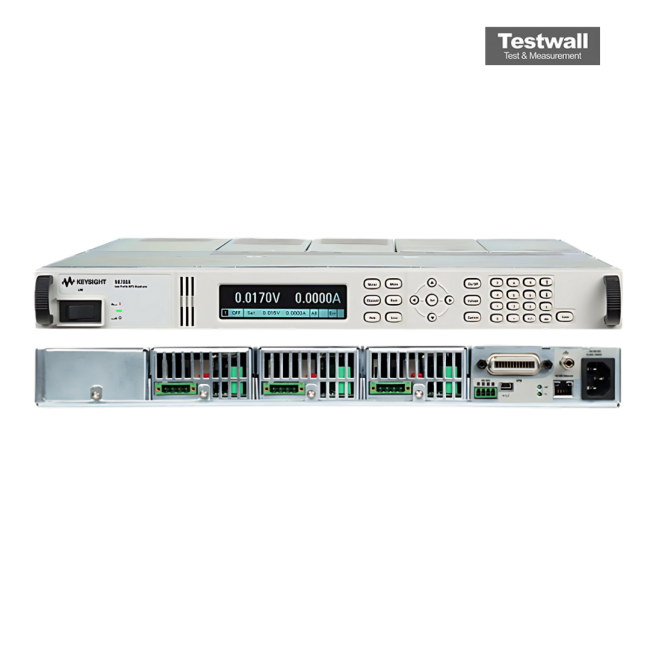

The Keysight (Agilent) N6701A is a 600 W, 1U-high, 4-slot modular power system mainframe supporting up to four N6700 series DC power modules, tailored for flexibility and high performance. It features standard GPIB, LAN, USB interfaces, and LXI Class C compliance, with modules ranging from 20–300 W for precision or basic applications. It operates from 100–240 VAC with an internal, non-accessible fuse.
With fast protection response and a power consumption of 1500 VA, it ensures secure operation. Module selection enables configurations suitable for R&D, manufacturing, and automated test environments.
Testwall can supply the used Keysight (Agilent) N6701A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6701A
