Keysight (Agilent)
Keysight (Agilent) N6705B
N6705B DC Power Analyzer, Modular Power Supply
4 Number of Output Slots
600 W total (up to 300 W per slot) Maximum Output Power
Up to 60 V DC (depending on installed modules) Voltage Range
Up to 50 A DC (depending on installed modules) Current Range
4.3-inch color LCD touchscreen Display
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 600 W total (up to 300 W per slot) |
| Voltage Range | Up to 60 V DC (depending on installed modules) |
| Current Range | Up to 50 A DC (depending on installed modules) |
| Display | 4.3-inch color LCD touchscreen |
| Interface / Connectivity | GPIB, USB, and LAN (LXI compliant) |
| Data Logging / Measurement | Built-in data logger with oscilloscope-like waveform display; measures voltage, current, and power |
| Arbitrary Waveform Generation | Built-in arbitrary waveform generator for voltage and current output sequencing |
| Operating Temperature | 0°C to 55°C |
| Input Voltage (AC Mains) | 100–240 V AC, 50/60 Hz |
Keysight (Agilent) N6705B Options:
- N6705B - 1CP005A - Rack mount kit
- N6705B - AKY - Delete front/rear USB (removes all USB capability from the DC power analyzer)
- N6705B - 055 - Delete data logger (disables the data logger functionality in the DC power analyzer firmware)
- N6705B - 056 - Software license (provides a license to control one N6705 mainframe using the 14585A Control & Analysis software)
- N6705B - ABA - Full documentation on CD-ROM and printed users guide
- N6705B - 900 - Power cord, United Kingdom, P/N 8120-1351
- N6705B - 901 - Power cord, Australia, New Zealand, P/N 8120-1369
- N6705B - 902 - Power cord, Europe, Korea, P/N 8120-1689
- N6705B - 903 - Power cord, USA, Canada, 120 V, P/N 8120-4383
- N6705B - 904 - Power cord, USA, Canada, 240 V, P/N 8120-0698
- N6705B - 906 - Power cord, Switzerland, P/N 8120-2104
- N6705B - 912 - Power cord, Denmark, P/N 8120-2956
- N6705B - 917 - Power cord, South Africa, India, P/N 8120-4211
- N6705B - 918 - Power cord, Japan, 100 V, P/N 8120-5342
- N6705B - 919 - Power cord, Israel, P/N 8120-6800
- N6705B - 920 - Power cord, Argentina, P/N 8120-6869
- N6705B - 921 - Power cord, Chile, P/N 8120-6980
- N6705B - 922 - Power cord, China, P/N 8120-8376
- N6705B - 927 - Power cord, Thailand, Brazil, P/N 8120-8871
| Model | N6705B |
|---|

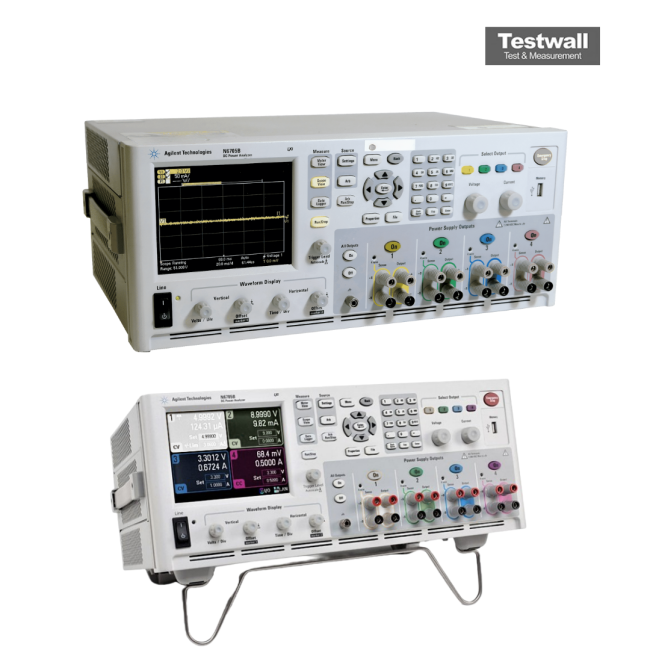

The Keysight (Agilent) N6705B DC Power Analyzer integrates four advanced power supplies with DMM, oscilloscope, arb, and data logger, supporting up to 600 W output via 4 DC Power Modules. It offers USB, GPIB, LAN interfaces and is LXI Class C compliant.
Ideal for automated and manual bench setups, it simplifies sourcing and measurement tasks without needing external transducers. Optional 14585A software enhances control and analysis.
Testwall can supply the used Keysight (Agilent) N6705B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6705B.
