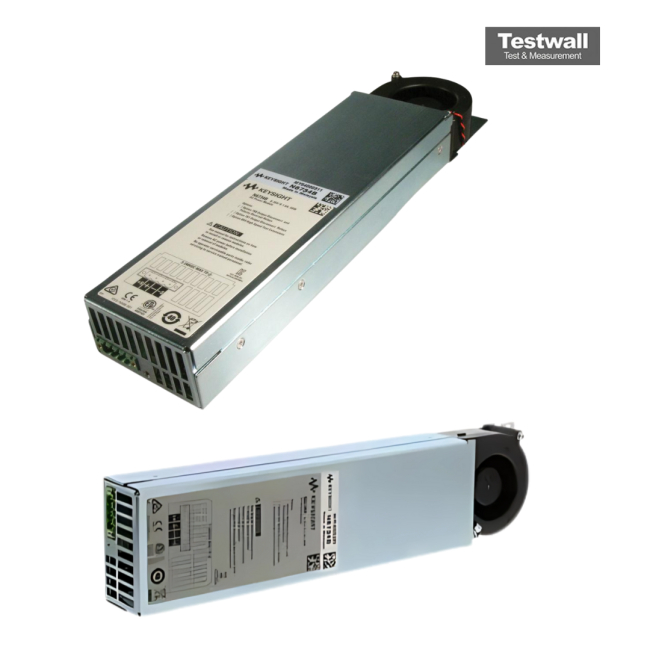

Keysight (Agilent) N6734B
| Attribute | Value |
|---|---|
| Output Voltage | 0 to 20 V |
| Output Current | 0 to 10 A |
| Output Power | 200 W |
| Number of Outputs | 1 |
| Voltage Programming Accuracy | 0.04% + 10 mV |
| Current Programming Accuracy | 0.1% + 10 mA |
| Form Factor | Module (for use in Keysight N6700 Modular Power System mainframe) |
| Readback Accuracy (Voltage) | 0.04% + 10 mV |
| Readback Accuracy (Current) | 0.1% + 10 mA |
| Operating Temperature | 0°C to 55°C |
| Model | N6734B |
|---|
The Keysight (Agilent) N6734B is a 52.5 W basic DC power module offering programmable voltage up to 35 V and current up to 1.5 A. It features precision measurement, protection functions, and low ripple with 0.1% + 35 mV voltage accuracy and 0.15% + 20 mA current accuracy. Designed for ATE systems and bench testing, it supports GPIB, LAN, USB, and complies with LXI Class C. It’s compatible with N6700 and N6705 systems.
Used in ATE setups and DC Power Analyzers, the N6734B delivers reliable output with minimal noise: 5 mV RMS voltage and 2 mA RMS current, suitable for fixture control or powering DUTs.
Testwall can supply the used Keysight (Agilent) N6734B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6734B.
