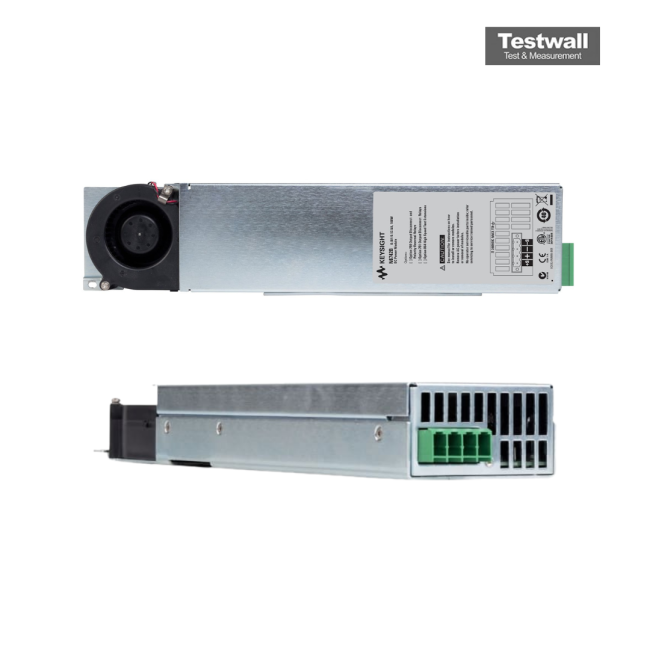

Keysight (Agilent) N6742B N6742B
| Attribute | Value |
|---|---|
| Output Voltage | 0 to 8V |
| Output Current | 0 to 50A |
| Output Power | 400W |
| Voltage Programming Accuracy | 0.05% + 10mV |
| Current Programming Accuracy | 0.1% + 50mA |
| Voltage Readback Accuracy | 0.05% + 10mV |
| Current Readback Accuracy | 0.1% + 50mA |
| Output Ripple and Noise (PARD) | 3mV rms / 30mV peak-to-peak |
| Form Factor | DC Power Module compatible with N6700 Series Mainframe |
| Interfaces | GPIB, LAN, USB (via mainframe) |
Keysight (Agilent) N6742B N6742B Options:
- N6742B - 760 - Output disconnect/polarity reversal relays (limits output current to 10A maximum)
- N6742B - 761 - Output and sense disconnect relays
- N6742B - 054 - High-speed Test Extensions (output list and digitized measurement capability)
| Model | N6742B |
|---|
The Keysight (Agilent) N6742B is a 100 W basic DC power module offering programmable voltage up to 8 V and current up to 12.5 A, with advanced measurement and protection capabilities. It delivers a programming accuracy of 0.1% + 19 mV for voltage and 0.15% + 20 mA for current. Standard connectivity includes GPIB, LAN, USB, and compliance with LXI Class C, making it suitable for both ATE systems and bench testing applications.
This module is compatible with the N6700 Low-Profile Modular Power System and the N6705 DC Power Analyzer, providing essential power for DUTs or system resources like fixture control in automated setups.
Testwall can supply the used Keysight (Agilent) N6742B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6742B.
