Keysight (Agilent)

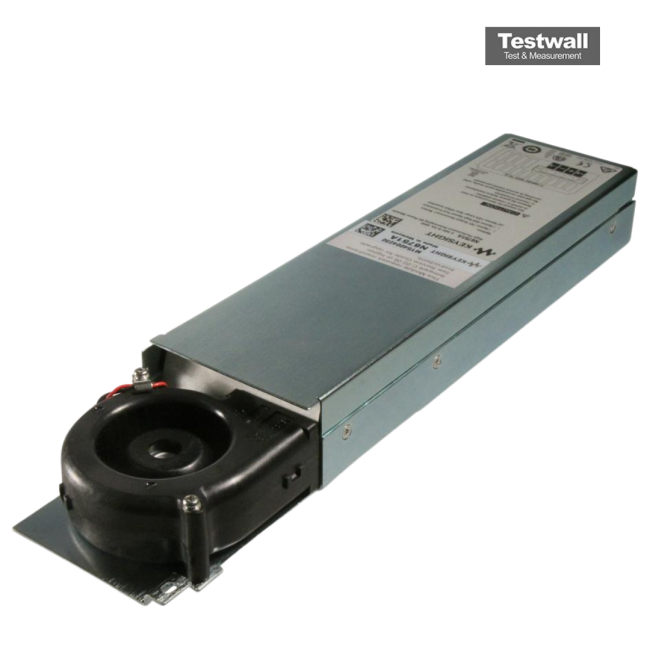

Keysight (Agilent) N6751A
DC Power Module, 50V, 5A, 50W
0 to 50 V Output Voltage Range
0 to 5 A Output Current Range
100 W Maximum Output Power
0.04% + 15 mV Voltage Programming Accuracy
0.1% + 5 mA Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 50 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 100 W |
| Voltage Programming Accuracy | 0.04% + 15 mV |
| Current Programming Accuracy | 0.1% + 5 mA |
| Voltage Readback Accuracy | 0.04% + 15 mV |
| Current Readback Accuracy | 0.1% + 5 mA |
| Form Factor | Single-output DC power module for use in Keysight N6700 modular power system mainframe |
| Output Isolation | ±240 V from chassis ground |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) N6751A Options:
- N6751A - 054 - High-speed Test Extensions (output list and digitized measurement capability)
- N6751A - 760 - Output disconnect/polarity reversal relays
- N6751A - 761 - Output and sense disconnect relays
| Model | N6751A |
|---|
The Keysight (Agilent) N6751A is a 50 W auto-ranging DC power module offering low noise, superior accuracy, and ultra-fast programming—up to 50× faster than typical supplies. Optional high-speed digitizer enhances transient or pulse capture.
Ideal for use in N6700 Modular Power Systems and N6705 DC Power Analyzers with GPIB, LAN, USB, and LXI interfaces. Selectable from 20+ modules between 20 W to 500 W.
Testwall can supply the used Keysight (Agilent) N6751A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6751A.
