Keysight (Agilent) N6754A N6754A
| Attribute | Value |
|---|---|
| Output Voltage | 0 to 60 V |
| Output Current | 0 to 10 A |
| Output Power | 300 W |
| Number of Output Channels | 1 |
| Voltage Programming Accuracy | 0.04% + 15 mV |
| Current Programming Accuracy | 0.04% + 15 mA |
| Voltage Readback Accuracy | 0.02% + 10 mV |
| Current Readback Accuracy | 0.02% + 10 mA |
| Form Factor / Module Compatibility | Single-wide module for Keysight N6700 Series Modular Power System mainframe |
| Interface / Connectivity | Controlled via N6700 Series mainframe (LAN, USB, GPIB) |
Keysight (Agilent) N6754A N6754A Options:
- N6754A - 760 - Output disconnect/polarity reversal relays
- N6754A - 761 - Output disconnect relays
| Model | N6754A |
|---|

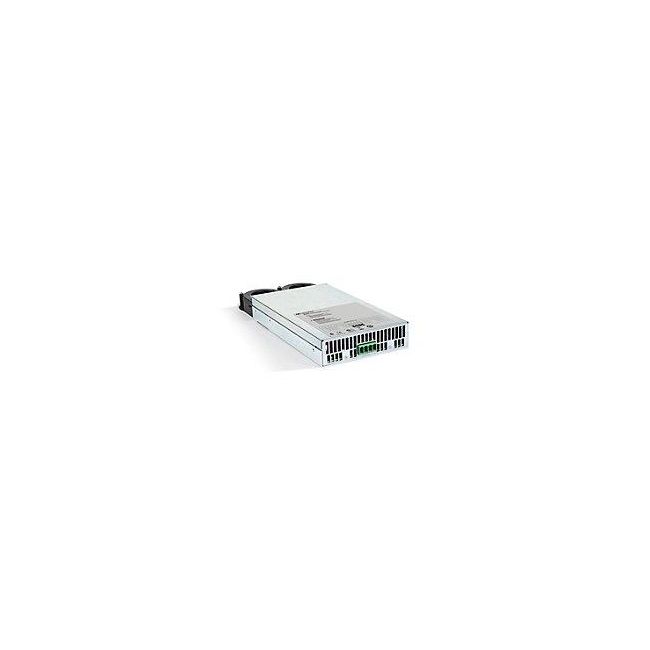

The Keysight (Agilent) N6754A is a 300 W high-performance DC power module featuring 60 V output, 20 A current, and autoranging capability. It ensures low noise (1 mV rms), high programming accuracy (0.06% + 25 mV for voltage), and ultra-fast operation—10 to 50 times faster than typical power supplies.
Compatible with N6700 for ATE systems and N6705 for bench testing, it includes GPIB, LAN, USB, and LXI Class C interfaces. Optional digitizer extension enhances high-speed measurement accuracy.
Testwall can supply the used Keysight (Agilent) N6754A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6754A.
