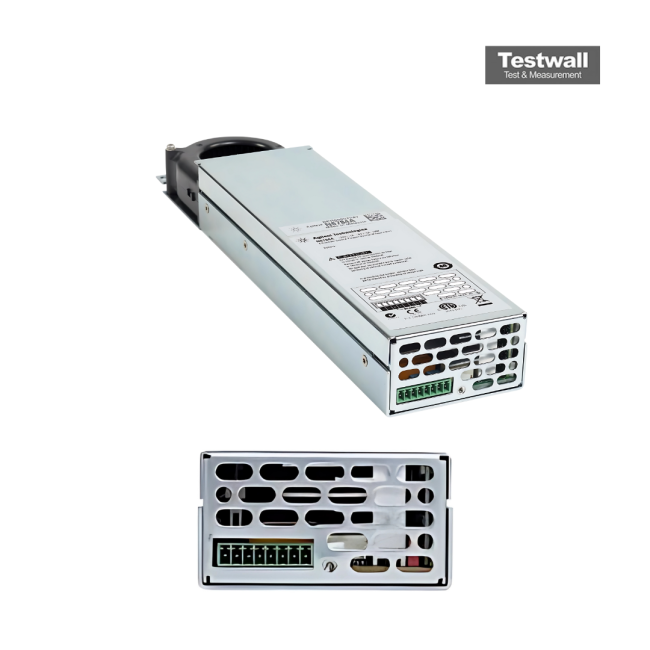

Keysight (Agilent) N6784A
| Attribute | Value |
|---|---|
| Output Voltage Range | -20 V to +20 V |
| Output Current Range | -3 A to +3 A |
| Maximum Output Power | 20 W |
| Number of Outputs | 1 |
| Form Factor | Plug-in module for Keysight N6700 series mainframe |
| Measurement Functions | Voltage and current measurement with data logging capability |
| Programming Resolution (Voltage) | 1 mV |
| Programming Resolution (Current) | 1 mA |
| Operating Temperature | 0°C to 55°C |
| Interface/Connectivity | GPIB, LAN, USB (via N6700 mainframe) |
Keysight (Agilent) N6784A Options:
- N6784A - Option 760 - Output disconnect/polarity reversal relays (not available on N6784A per datasheet)
- N6784A - Option 761 - Output and sense disconnect relays
- N6784A - Option 054 - High-speed Test Extensions: output list and digitized measurement capability
- N6784A - Option 2UA - 200 microampere measurement range (available on N6761A and N6762A only)
| Model | N6784A |
|---|
The Keysight (Agilent) N6784A Source/Measure Unit (SMU) provides up to ±20 V, ±3 A, and 20 W of power output with 4‑quadrant operation. This device features four programmable and measurement current ranges, excellent transient response, glitch‑free range transitions, and high‑speed digitized measurements with a built‑in 200 kHz digitizer. It enables DC modulation up to 100 kHz for waveform generation.
Ideal for precise power sourcing and analysis, the N6784A supports applications with up to 150 µF capacitive loads and offers measurement accuracy down to nA and µV levels. Engineers benefit from its flexibility in R&D and testing environments.
Testwall can supply the used Keysight (Agilent) N6784A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6784A.
