Keysight (Agilent)

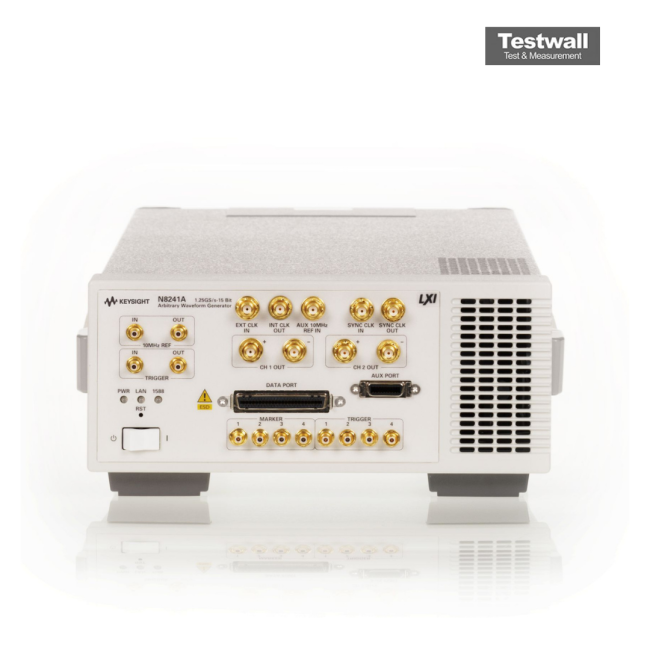

Keysight (Agilent) N8241A-125
2 Ch 1.25GSa/s Arbitrary Waveform Generator
1.25 GS/s Sample Rate
500 MHz Bandwidth
15-bit DAC Vertical Resolution
2 Analog Output Channels Number of Channels
Up to 512 MSa per channel Memory Depth
| Attribute | Value |
|---|---|
| Sample Rate | 1.25 GS/s |
| Bandwidth | 500 MHz |
| Vertical Resolution | 15-bit DAC |
| Number of Channels | 2 Analog Output Channels |
| Memory Depth | Up to 512 MSa per channel |
| Output Voltage Range | ±0.5 V into 50 Ω |
| Form Factor | PXI Express (PXIe) Module |
| Spurious-Free Dynamic Range (SFDR) | >75 dBc typical |
| Reference Clock | Internal or External 10 MHz Reference |
| Operating Temperature | 0°C to 55°C |
| Model | N8241A-125 |
|---|
The Keysight (Agilent) N8241A-125 is a precision 15-bit arbitrary waveform generator offering a 1.25 GS/s sampling rate and 500 MHz analog bandwidth per channel, ideal for high-fidelity signal generation tasks.
Engineered for dynamic sequencing, LXI compliance, and modular test setups, it’s tailored for demanding applications in signal simulation and RF environments.
Testwall can supply the used Keysight (Agilent) N8241A-125, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8241A-125.
