Keysight (Agilent) N8242A-062
2 Ch 625MSa/s Arbitrary Waveform Generator
2 channels Channels
10 bit Vertical Resolution
≤ -50 dBc Harmonic Distortion
SMA female Output Connector
LAN (LXI) Interfaces
| Attribute | Value |
|---|---|
| Channels | 2 channels |
| Vertical Resolution | 10 bit |
| Harmonic Distortion | ≤ -50 dBc |
| Output Connector | SMA female |
| Interfaces | LAN (LXI) |
| Frequency Range | 500 MHz per channel with Opt. 125, 250 MHz with Opt. 062 (1 GHz or 500 MHz I/Q) |
| Sample Rate | 625 MSa/s, 250 MHz per channel (Opt. 062) |
| Amplitude | 0.5 Vpp passive, 1 Vpp active, 1 Vpp direct DAC into 50 Ω |
| Arbitrary Memory | 8 MSa per channel (16 MSa with Opt. 016) |
| Dimensions | 216 × 88 × 447 mm |
| Weight | 5.0 kg |

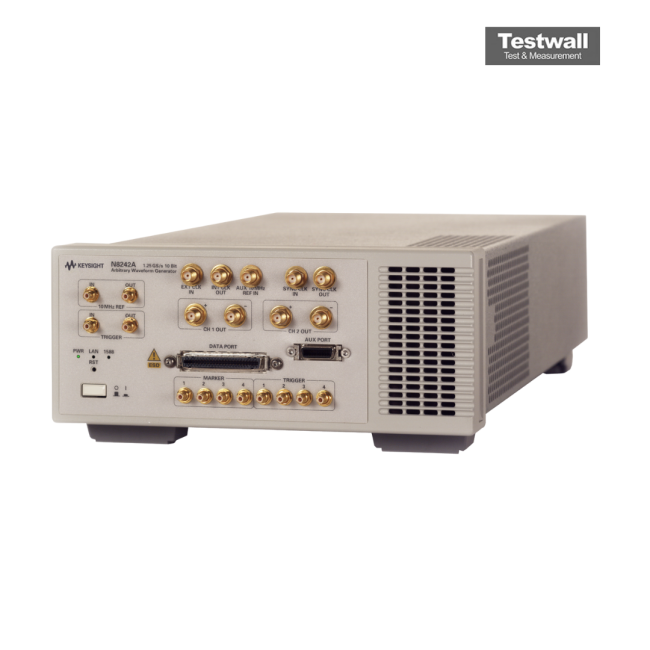

The Keysight (Agilent) N8242A-062 is a 10-bit arbitrary waveform generator with a 625 MS/s sampling rate and 250 MHz analog bandwidth per channel. It features a compact modular design and is LXI compliant, supporting streamlined test system integration.
Ideal for applications needing moderate resolution, the unit includes a user-friendly graphical interface that enhances ease of setup and operation.
Testwall can supply the used Keysight (Agilent) N8242A-062, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8242A-062.
