Keysight (Agilent)

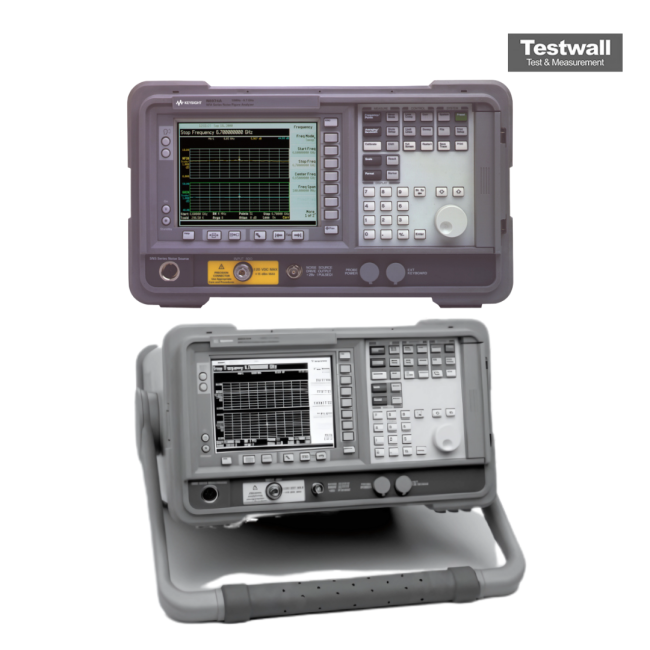

Keysight (Agilent) N8974A
10MHz-6.7GHz Noise Figure Analyser
10 MHz to 6.7 GHz Frequency Range
0 dB to 30 dB Noise Figure Measurement Range
±0.05 dB (typical) Noise Figure Uncertainty
-10 dB to 40 dB Gain Measurement Range
8.4-inch color LCD touchscreen Display
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 6.7 GHz |
| Noise Figure Measurement Range | 0 dB to 30 dB |
| Noise Figure Uncertainty | ±0.05 dB (typical) |
| Gain Measurement Range | -10 dB to 40 dB |
| Display | 8.4-inch color LCD touchscreen |
| Input Impedance | 50 Ohm |
| Connectivity/Interface | GPIB, USB, LAN (LXI Core 2011) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 425 mm x 222 mm x 498 mm (16.7 in x 8.75 in x 19.6 in) |
Keysight (Agilent) N8974A Options:
- N8974A - 1D5 - High stability frequency reference option (recommended for applications requiring high frequency stability)
| Model | N8974A |
|---|
The Keysight (Agilent) N8974A is a high-performance noise figure analyzer offering precise and repeatable measurements across 10 MHz to 6.7 GHz in a compact one-box solution. It supports simultaneous noise figure and gain measurements, enhanced with six user-selectable bandwidths and compatibility with SNS series noise sources. With APC 3.5 (m) connectors and a streamlined interface, the N8974A allows users to view, save, and print data in multiple formats. It also features dedicated 2nd GPIB for LO control, enabling accurate characterization of amplifiers and frequency translating devices.
Ideal for RF component testing in communications, aerospace, and R&D labs, it ensures reliable performance and fast throughput in complex measurement environments.
Testwall can supply the used Keysight (Agilent) N8974A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8974A.
