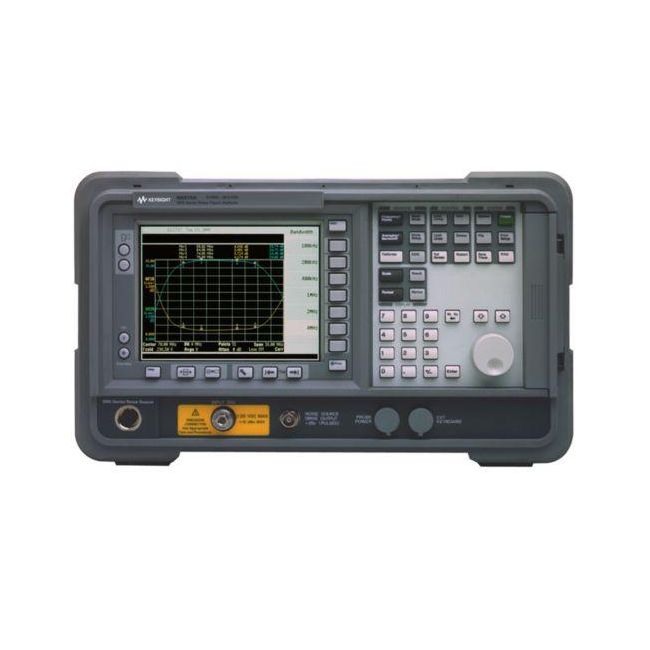

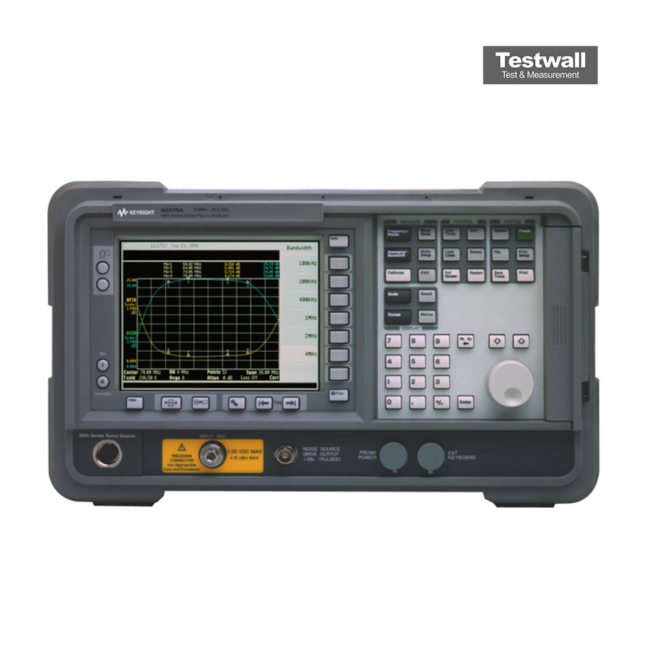

Keysight (Agilent) N8975A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 6.7 GHz |
| Noise Figure Measurement Range | 0 dB to 30 dB |
| Noise Figure Uncertainty | ±0.05 dB (typical) |
| Gain Measurement Range | -20 dB to +40 dB |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, LAN (LXI Core 2011), USB |
| Input Impedance | 50 Ohm |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 W maximum |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 426 mm x 222 mm x 498 mm (16.8 in x 8.7 in x 19.6 in) |
Keysight (Agilent) N8975A Options:
- N8975A - 1D5 - High stability frequency reference (recommended for applications requiring high frequency stability)
| Model | N8975A |
|---|
The Keysight (Agilent) N8975A is a precision noise figure analyzer with a 10 MHz to 26.5 GHz frequency range, offering a one-box solution for high-speed, accurate, and repeatable measurements. It supports simultaneous noise figure and gain readings with enhanced accuracy, six selectable measurement bandwidths, and compatibility with N4000A, N4001A, and N4002A noise sources. Additional features include APC 3.5 (m) connectors and extended analysis up to 110 GHz via block downconverters.
Ideal for characterizing amplifiers and frequency-translating devices, the N8975A simplifies complex setups with intuitive controls and 2nd GPIB LO control, delivering versatile and reliable performance for advanced RF measurements.
Testwall can supply the used Keysight (Agilent) N8975A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8975A.
