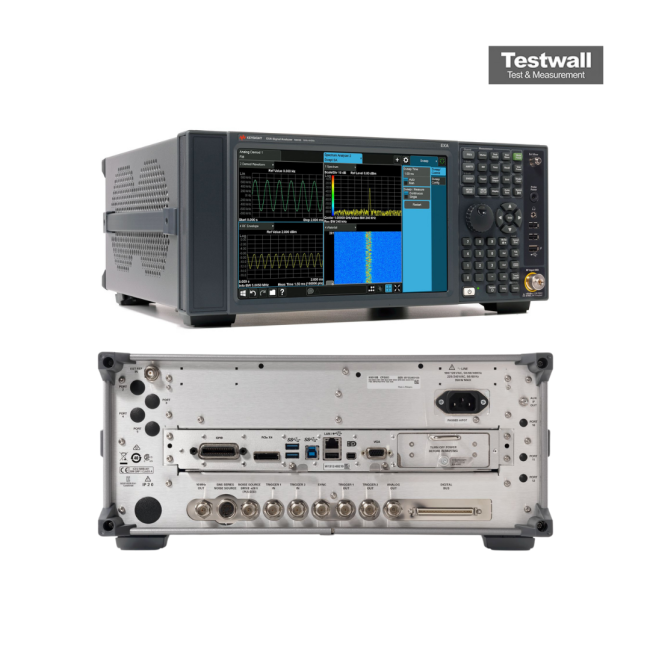

Keysight (Agilent) N9010B-544 10Hz to 44GHz, Multi-Touch Display Spectrum Analyser (Signal Analyser)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 44 GHz |
| Display Type | Multi-Touch Display |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamplifier enabled) |
| Phase Noise | -108 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.19 dB (typical, at 50 MHz reference frequency) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz (–3 dB), 4, 5, 6, 8 MHz |
| Third-Order Intercept (TOI) | +20 dBm (typical, at 1 GHz) |
| Maximum Input Power | +30 dBm (1 W) continuous, DC coupled |
| Input Impedance | 50 Ohm nominal |
| Analysis Bandwidth | Up to 510 MHz (with optional wideband hardware) |
| Model | N9010B-544 |
|---|
The Keysight Technologies N9010B-544 EXA Signal Analyzer offers exceptional performance from 10 Hz to 44 GHz with multi-touch functionality. Designed for cost-effective millimeter-wave analysis, it features fast sweep speeds for spurious response, best-in-class accuracy, and a list-sweep mode for rapid power measurements. It supports over 75 signal standards via 89600 VSA software and allows easy upgrades through X-Series applications.
Ideal for evolving RF test environments, the N9010B-544 balances price and capability, supporting general-purpose applications and precise low-level signal measurements near the noise floor.
Testwall can supply the used Keysight Technologies N9010B-544, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies N9010B-544.
