Keysight (Agilent) N9020A (508)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Dynamic Range | Up to 78 dB third-order intermodulation dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz, plus 4% and 5% resolution bandwidths |
| Input Frequency Reference | 10 MHz internal/external reference |
| Maximum Input Power | +30 dBm (1 W) maximum input power |
| Analysis Bandwidth | Up to 25 MHz real-time analysis bandwidth (with options) |
| Connectivity and Interface | LAN (LXI), USB, and GPIB interfaces supported |
Keysight (Agilent) N9020A (508) Options:
- N9020A - 503 - Frequency range, 20 Hz to 3.6 GHz
- N9020A - 508 - Frequency range, 20 Hz to 8.4 GHz
- N9020A - 513 - Frequency range, 20 Hz to 13.6 GHz
- N9020A - 526 - Frequency range, 20 Hz to 26.5 GHz
- N9020A - B25 - Analysis bandwidth, 25 MHz
- N9020A - PFR - Precision frequency reference
- N9020A - EA3 - Electronic attenuator, 3.6 GHz
- N9020A - P03 - Preamplifier, 3.6 GHz
- N9020A - P08 - Preamplifier, 8.4 GHz
- N9020A - P13 - Preamplifier, 13.6 GHz
- N9020A - P26 - Preamplifier, 26.5 GHz
| Model | N9020A |
|---|

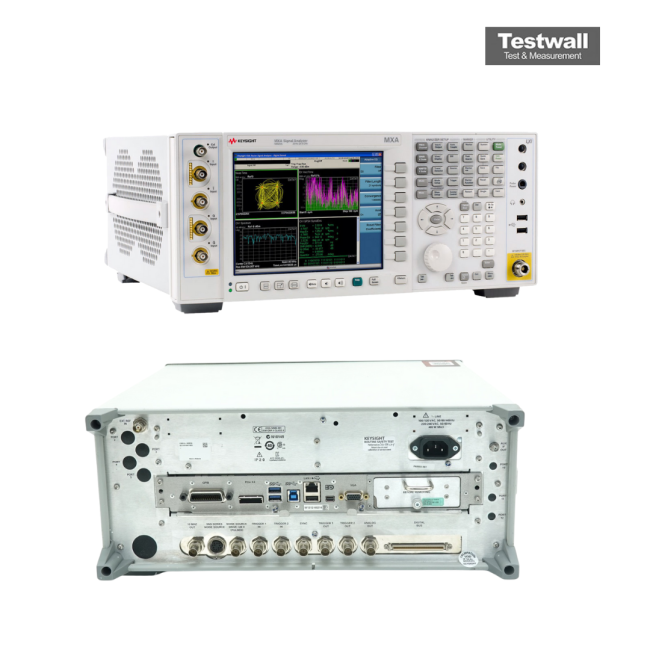

The Keysight (Agilent) N9020A-508 X-Series Signal Analyzer offers precise RF analysis from 10 Hz to 8.4 GHz, optimized for high-demand environments. It supports 160 MHz optional bandwidth, ultra-low phase noise of -116 dBc/Hz at 10 kHz, and modular software suites for wireless standards.
Ideal for commercial and military RF testing, it features real-time analysis options, USB/LAN/GPIB connectivity, and a customizable GUI for efficient workflow integration.
Testwall can supply the used Keysight (Agilent) N9020A-508, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9020A-508.
