Keysight (Agilent) N9030A-526
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Dynamic Range | Up to 78 dB third-order intermodulation dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Sweep Time | 1 ms to 4000 s (span > 10 Hz) |
| Instrument Type | PXA Signal Analyzer (X-Series) |
Keysight Technologies N9030A-526 Options:
- N9030A-526 - B25 - Analysis bandwidth, 25 MHz
- N9030A-526 - B40 - Analysis bandwidth, 40 MHz
- N9030A-526 - B1X - Analysis bandwidth, 140 MHz
- N9030A-526 - MPB - Microwave preselector bypass
- N9030A-526 - EA3 - Electronic attenuator, 3.6 GHz
- N9030A-526 - LNP - Low noise path
- N9030A-526 - P03 - Preamplifier, 3.6 GHz
- N9030A-526 - P08 - Preamplifier, 8.4 GHz
- N9030A-526 - P13 - Preamplifier, 13.6 GHz
- N9030A-526 - P26 - Preamplifier, 26.5 GHz
- N9030A-526 - HDD - Additional removable hard drive
- N9030A-526 - SSD - Removable solid state drive substitution
- N9030A-526 - CR3 - Connector rear, 2nd IF output
- N9030A-526 - CRP - Connector rear, Arbitrary IF output
- N9030A-526 - YAV - Y-axis video output
- N9030A-526 - ALV - Auxiliary log video output
- N9030A-526 - EMC - Basic precompliance EMI features
- N9030A-526 - KYB - Keyboard
- N9030A-526 - KB2 - US 65 key USB keyboard
- N9030A-526 - EFM - USB flash drive, 4 GB
- N9030A-526 - DVR - USB DVD-ROM/CD-R/RW drive
- N9030A-526 - MLP - Minimum loss pad, 50 to 75 Ω
- N9030A-526 - 1CP - Rack mount and handle kit
- N9030A-526 - 1CM - Rack mount kit
- N9030A-526 - 1CN - Front handle kit
- N9030A-526 - UK6 - Commercial calibration certificate with test data
- N9030A-526 - 1A7 - ISO 17025 compliant calibration
- N9030A-526 - A6J - ANSI Z540 compliant calibration
| Model | N9030A-526 |
|---|

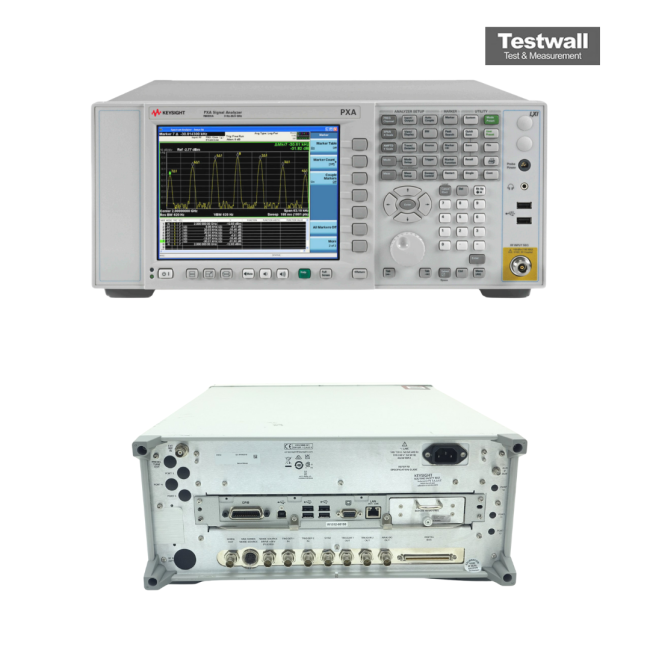

The Keysight (Agilent) N9030A-526 is a high-performance signal analyzer with a frequency range up to 26.5 GHz, real-time bandwidth of 160 MHz, and superior phase noise characteristics. It features optional capabilities for pulse, phase noise, and noise figure measurements, and supports the powerful 89600 VSA software for advanced signal analysis.
Its multi-touch interface and modular architecture make it ideal for evolving aerospace, defense, and 5G mmWave applications requiring precise high-frequency testing.
Testwall can supply the used Keysight (Agilent) N9030A-526, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9030A-526.
