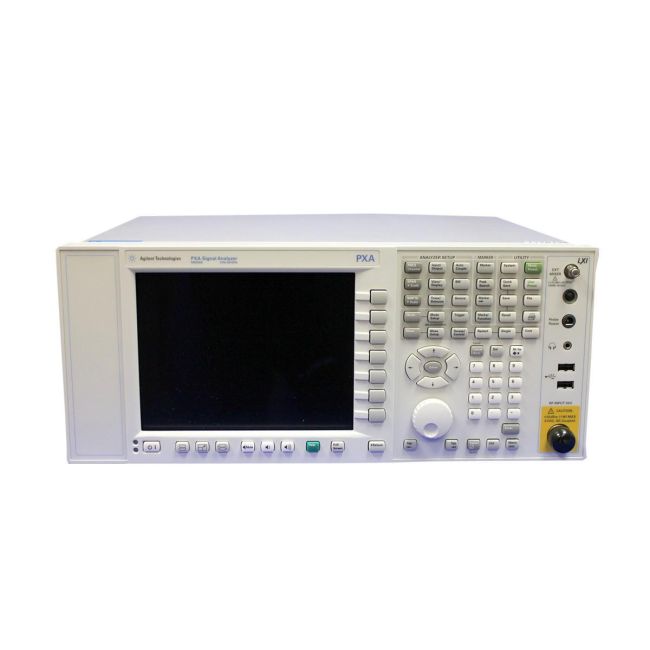

Keysight (Agilent) N9030A-550
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 50 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamplifier, at 2 GHz) |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (at 1 GHz carrier, typical) |
| Amplitude Accuracy | ±0.19 dB (total amplitude accuracy, typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Third-Order Intercept (TOI) | +20 dBm (typical, at 50 MHz to 3.6 GHz) |
| Input Attenuator Range | 0 to 70 dB (in 2 dB steps) |
| Maximum Input Power | +30 dBm (1 W) continuous, DC coupled |
| RF Input Connector | 2.4 mm female (50 ohm) |
| Dynamic Range | 78 dB (spurious-free dynamic range, typical at 1 GHz) |
Keysight Technologies N9030A-550 Options:
- N9030A-550 - EA3 - Electronic attenuator, 3 Hz to 3.6 GHz, 0 to 24 dB in 1 dB steps
- N9030A-550 - P03 - Preamplifier, 9 kHz to 3.6 GHz
- N9030A-550 - P08 - Preamplifier, 9 kHz to 8.4 GHz
- N9030A-550 - P13 - Preamplifier, 9 kHz to 13.6 GHz
- N9030A-550 - P26 - Preamplifier, 9 kHz to 26.5 GHz
- N9030A-550 - P43 - Preamplifier, 9 kHz to 43 GHz
- N9030A-550 - P44 - Preamplifier, 9 kHz to 44 GHz
- N9030A-550 - P50 - Preamplifier, 9 kHz to 50 GHz
- N9030A-550 - LNP - Low Noise Path
- N9030A-550 - MPB - Microwave preselector bypass, 3.6 to 50 GHz
- N9030A-550 - B25 - 25 MHz analysis bandwidth
- N9030A-550 - B40 - 40 MHz analysis bandwidth
- N9030A-550 - B1X - 140 MHz analysis bandwidth
- N9030A-550 - EMC - EMC bandwidth (CISPR and MIL STD 461E compliant bandwidths)
- N9030A-550 - EXM - External mixing
- N9030A-550 - CR3 - 2nd IF output
- N9030A-550 - CRP - Arbitrary IF output
- N9030A-550 - ALV - Log video output
- N9030A-550 - YAV - Y-Axis output
- N9030A-550 - C35 - APC 3.5 mm male RF input connector (with Option 526 only)
| Model | N9030A-550 |
|---|
The Keysight (Agilent) N9030A-550 offers a frequency range from 3 Hz to 50 GHz, delivering up to 510 MHz analysis bandwidth for advanced mmWave and 5G testing. It features low phase noise, high dynamic range, and supports external mixers for frequencies above 110 GHz.
Ideal for swept and real-time spectrum analysis, the N9030A-550 includes customizable applications and advanced vector signal analysis capabilities for comprehensive component evaluation.
Testwall can supply the used Keysight (Agilent) N9030A-550, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9030A-550.
